1
Engine displacement
800
2
Year
2014
3
Trim
sportsman-800-efi-forest-a14mh76fd
4
Parts Catalog
TORSION BAR (BUILT 10/03/13 AND BEFORE)
5
Parts Diagram
Parts Catalog
CONTROLS THROTTLE ASM. AND CABLE
by
TOOL KIT

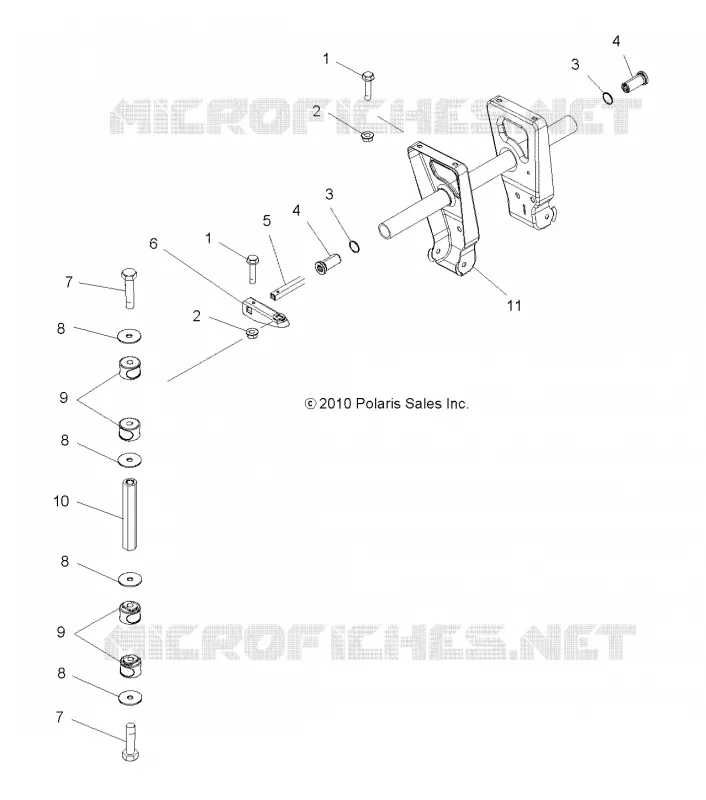

TORSION BAR (BUILT 10/03/13 AND BEFORE)
1
1
2
2
3
3
4
4
5
6
7
7
8
8
8
8
9
9
10
11
1
2
3
4
5
6
7
1
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
2
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
3
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
4
BUSHING STABILIZER TUBE BLACK
5438901
$16,79 Unit Price incl. VAT
5
Bar Stabilizer Tube
5334114067
5334114-329
$178,49 Unit Price incl. VAT
6
ARM STABILIZER BAR BLACK
1543119067
$99,74 Unit Price incl. VAT
7
SCREW(10)
7517231
$13,64 Unit Price incl. VAT
8
Washer Flat
7555761
$4,19 Unit Price incl. VAT
9
Bushing
5432598
$12,59 Unit Price incl. VAT
10
ROD LINKAGE STABILIZER
5020827
$99,74 Unit Price incl. VAT
11
SUPPORT STABILIZER BLACK
1542848067
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
