1
Engine displacement
500
2
Year
2011
3
Trim
RANGER 4X4 500 EFI - R11RH50AG/AH/AR
4
Parts Catalog

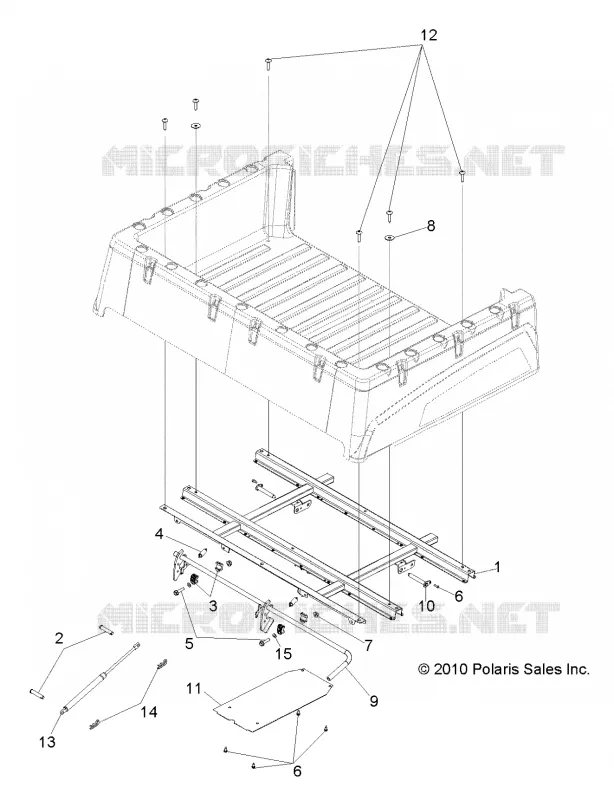

BED BOX MOUNTING
5
Parts Diagram
Parts Catalog
TAILGATE ASM.
by
DECALS
BED BOX MOUNTING
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
1
SUPPORT BOX SHORT BLACK
1016785329
Not Available
2
PIN-CLEVIS 1/2 X 1 3/4
7661878
$4,19 Unit Price incl. VAT
3
BUSHING-BOX LATCH
5434226
$7,34 Unit Price incl. VAT
4
SPRING-EXHAUST
7041687
$12,59 Unit Price incl. VAT
5
Bolt Hex
7515319
$9,44 Unit Price incl. VAT
6
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
7
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
8
WASHER-.281X1.00X.051
7556329
$2,09 Unit Price incl. VAT
9
LATCH DOUBLE MATTE BLACK
1017434458
$330,74 Unit Price incl. VAT
10
WELD-PIN BOX HINGE BLK
1016695329
$19,94 Unit Price incl. VAT
11
Shield Heat Exhaust
5253903
Not Available
12
Screw (If built before 7/23/01)
7517686
$3,14 Unit Price incl. VAT
13
SHOCK DUMP BOX [BUILT 10/14/13 AND BEFORE]
7043187
$125,99 Unit Price incl. VAT
14
CLIP-HITCHPIN .148X3 1/16
7661067
$4,19 Unit Price incl. VAT
15
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
