1
Engine displacement
0
2
Year
1990
3
Trim
TRAIL SUPERTRAK - 0900161
4
Parts Catalog
BRAKE CHAINCASE SWEDISH SUPERTRAK (49187318730003)
5
Parts Diagram
Parts Catalog
CARBURETOR SUPERTRAK DEALER MUST VERIFY JETTING CARBURETOR N (4917131713030A)
by
MASTER CYLINDER ALL SWEDISH SNOWMOBILES (49187318730007)

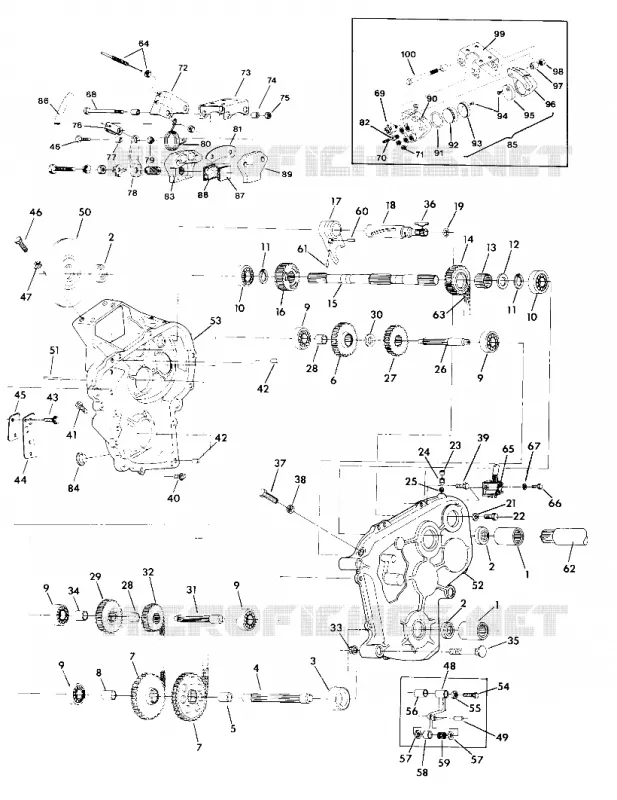

BRAKE CHAINCASE SWEDISH SUPERTRAK (49187318730003)
1
COUPLER SHAFT (O/P)
5020449
Not Available
2
SEAL OIL
3610015
Not Available
3
BEARING CHAINCASE
3514305
$34,64 Unit Price incl. VAT
4
SHAFT OUTPUT Substituted by 6230065
5020450
Not Available
5
SPACER OUTPUT SHAFT
5010227
Not Available
6
SPROCKET 39 T
3222034
Not Available
6
GEAR 30T LOW RANGE
5130758
Not Available
7
SPROCKET-41T
3222037
Not Available
8
SPACER OUTPUT
5020480
Not Available
9
BEARING BALL
3514001
$34,64 Unit Price incl. VAT
10
BEARING W/O SEAL
3514304
$27,29 Unit Price incl. VAT
11
RING RET.(10)
7710411
Not Available
12
WASHER(10)
7555751
Not Available
13
BEARING NEEDLE
3554503
Not Available
14
GEAR 19T FWD. (19T)
5130697
Not Available
14
GEAR FORWARD 21T (21T)
5130661
Not Available
15
SHAFT INPUT
5020508
Not Available
16
PINION REVERSE
5130667
Not Available
17
FORK SHIFT (Mach.)
5130662
Not Available
18
SHAFT SHIFT Substituted by 5130802
5130669
Not Available
19
O-RING
5410440
$8,39 Unit Price incl. VAT
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
22
BOLT(10)
7512247
Not Available
23
SCREW SET(10)
7515473
Not Available
24
SPRING SHIFTER DETENT Substituted by 7041483
7041187
$83,99 Unit Price incl. VAT
25
BALL DETENT
7080310
$10,49 Unit Price incl. VAT
26
SHAFT LOW RANGE
5020481
Not Available
27
GEAR 24T
5130607
Not Available
28
SPACER REV.SHAFT
5010225
Not Available
29
GEAR 30T REVERSE
5130757
Not Available
30
SPACER
5010260
Not Available
31
SHAFT REVERSE
5020446
Not Available
32
SPKT 18T
3221042
Not Available
33
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
34
SPACER
5010261
Not Available
35
BOLT(10)
7515474
Not Available
36
WEIGHT KEY(10)
7721112
Not Available
37
SCREW(10)
7512470
Not Available
38
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
39
SCREW(10)
7512225
$7,34 Unit Price incl. VAT
40
PLUG PIPE MAGNETIC
7051512
Not Available
41
PLUG PIPE(10)
7051511
Not Available
42
PIN DOWEL(10)
7661904
Not Available
43
SCREW(10)
7512252
Not Available
44
PLATE VENT
5211036
Not Available
45
GASKET VENT
5810305
Not Available
46
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
47
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
48
BLOCK TIGHTENER [No Longer Available]
5630122
Not Available
49
PIN CHAIN TIGHTENER
7662210
Not Available
50
DISC BRAKE WELD.
1910027
Not Available
51
PIN-SPIRAL(10)
7661504
Not Available
52
GEARCASE LH MACH.
5130660
Not Available
53
GEARCASE RH MACH.
5130755
Not Available
54
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
55
WASHER 5/16SHAKEPROOF(10)
7577909
Not Available
56
BUSHING
5010217
Not Available
57
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
58
WHEEL C/C IDLER
5630123
Not Available
59
BEARING
3553002
$20,99 Unit Price incl. VAT
60
PIN DOWEL(10)
7661819
Not Available
61
PIN SPRING(10)
7661206
Not Available
62
JACKSHAFT
5020460
Not Available
62
SHAFT INPUT Substituted by 5020540-067
5020540
Not Available
63
CHAIN 66 PITCH
3224024
Not Available
64
CABLE BRAKE
7080376
Not Available
65
SWITCH INDICATOR ASM.
2410005
Not Available
66
BOLT
7511989
Not Available
67
WASHER-LOCK(10)
7571601
Not Available
68
BOLT-BRIDGE
1930561
Not Available
69
SWITCH STOPLIGHT
4110089
Not Available
70
ADAPTOR/BLEEDER ASM. (Incl. 82)
1930671
Not Available
71
GEAR 30T LOW RANGE
5130758
Not Available
71
PLUG(10)
7051517
Not Available
72
BRKT BRAKE BLK. Substituted by 5220211-067
5220211
Not Available
73
BRKT BRAKE MTG (MOD) [No Longer Available]
5222435
Not Available
74
BUSHING
1930559
Not Available
75
NUT
1930558
Not Available
76
PIN CLEVIS
7080316
Not Available
77
BUSHING
5332795
Not Available
78
LEVER ASM BRAKE
2050039
Not Available
79
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
80
SPRING BRAKE RETURN
7041147
Not Available
81
SPACER
5210999
Not Available
82
FITTING BRAKE ADAPTOR
7052051
Not Available
83
CALIPER ASM BRAKE
1930652
Not Available
84
PLUG PIPE
7052045
$26,24 Unit Price incl. VAT
85
BRAKE ASM.
1930544
Not Available
85
RETAINER RECOIL Substituted by 1011593-067 (600 600 LE)
1011593
Not Available
86
LINE BRAKE Substituted by 2200393
1930667
Not Available
87
PAD PARK BRAKE(COMPL.)
1930670
Not Available
88
PAD BRAKE (THICK)
1930588
Not Available
89
BRAKE ASM.(HALF)
1930668
$173,24 Unit Price incl. VAT
90
CASTING PISTONSIDE Substituted by 1930544
1930675
Not Available
91
O-RING
1930676
Not Available
92
PISTON
1930677
Not Available
93
PUCK BRAKE
1930535
Not Available
94
SCREW BRASS (10)
1930536
Not Available
95
PUCK BRAKE
1930534
Not Available
96
CASTING CARRIERSIDE
1930679
Not Available
97
BUSHING Substituted by 1930559
1930680
Not Available
99
BRACKET (Sport Trail 400)
1930560
Not Available
100
SCREW MASTER CYL.
1930687
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
