CRANKSHAFT AND PISTON FOR MSX 140 - W045303CA/IA FROM 2004

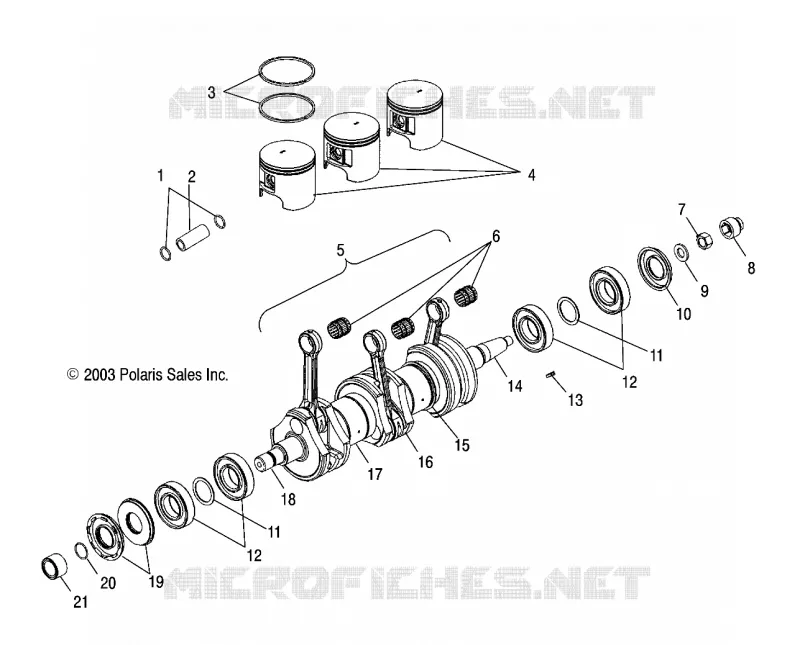

CRANKSHAFT AND PISTON

-

Kit Crankshaft [Incl. 6 11-17]

2202422

Not Available

1

CIRCLIP PISTON 22MMX1.6

3021179

$15,74 Unit Price incl. VAT

2

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

3

PISTON RINGS KIT 85MM SNO

2201631

Not Available

4

Kit Piston [Incl. 1 2 3]

2202337

$283,49 Unit Price incl. VAT

5

CONNE ROD KIT ASM.

2201445

Not Available

6

BEARING 17NDL PSTNPIN.

3552112

Not Available

6

BEARING-17-22X27X25 PNPIN KOYO [INCL.5 7 10-12]

3514357

$40,94 Unit Price incl. VAT

7

NUT

7546909

Not Available

8

COUPLER PUMP DRIVE

5432576

Not Available

9

WASHER

7555907

$10,49 Unit Price incl. VAT

10

SEAL (Magneto)

3610044

$41,99 Unit Price incl. VAT

11

BUSHING(10)

7555905

$6,29 Unit Price incl. VAT

12

BEARING BALL [PTO END]

3585503

$54,59 Unit Price incl. VAT

13

KEY WOODRUFF

7721117

$47,24 Unit Price incl. VAT

14

Desc not available [No Longer Available]

5131744

Not Available

15

BEARING BALL

3514318

$74,54 Unit Price incl. VAT

16

Desc not available [No Longer Available]

5131745

Not Available

17

LABYRINTH

5131086

Not Available

18

Desc not available [No Longer Available]

5131746

Not Available

19

Seal Flange

5412091

$41,99 Unit Price incl. VAT

20

O-RING

5410613

$3,66 Unit Price incl. VAT

21

COLLAR CRANKSHAFT

5131195

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
