1
Engine displacement
500
2
Year
1996
3
Trim
500 EFI - 0963774
4
Parts Catalog
DRIVE CLUTCH 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B014)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B013)
by
BATTERY BOX 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618C005)

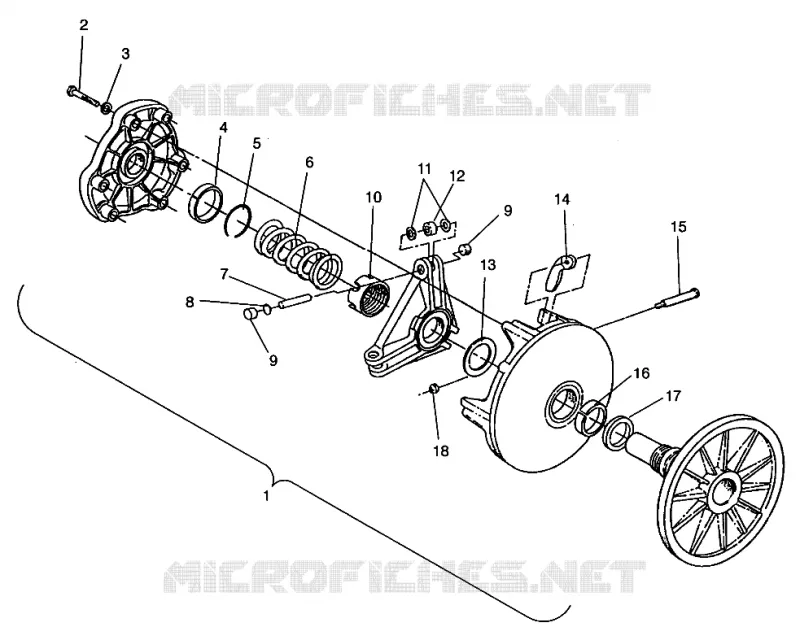

DRIVE CLUTCH 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B014)
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
1
KIT CLUTCH UPDATE [INCL.5 7-12 ]
2200386
$314,99 Unit Price incl. VAT
1
CLUTCH BASIC#59(DRIVE) Substituted by 1321718 (Less 6 14)
1321670
Not Available
2
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
3
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
RING RETAINING COVER
7710417
$2,09 Unit Price incl. VAT
6
SPRING-CLUTCH(GOLD)
7041148
$115,49 Unit Price incl. VAT
7
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
8
Kit - Shim Drive Clutch
2200387
$47,24 Unit Price incl. VAT
9
BUTTON GUIDE
5430445
$11,54 Unit Price incl. VAT
10
Nut Jam
5020425
$41,99 Unit Price incl. VAT
11
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
12
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
13
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
13
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
13
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
14
WT/BUSH.ASM 10M(3) (1OM)
1321528
$73,49 Unit Price incl. VAT
15
PIN HARDENED WEIGHT
7515105
$26,24 Unit Price incl. VAT
16
SLEEVE BEARING
3576502
$40,94 Unit Price incl. VAT
17
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
18
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
