CRANKCASE FOR SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ FROM 2011

COOLING SYSTEM AND WATER PUMP

ENGINE, CRANKSHAFT AND PISTON

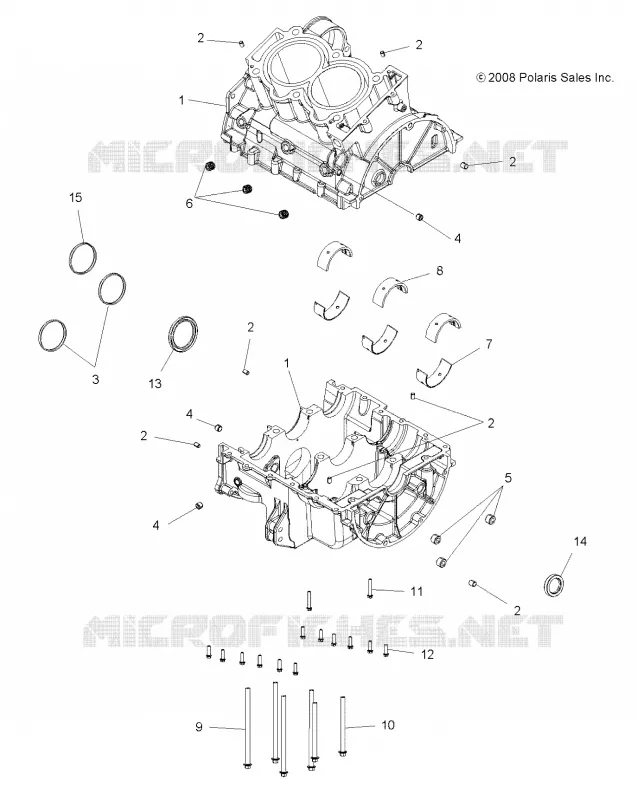

CRANKCASE

1

Kit Crankcase Iron Lined [Incl. 2 4-6 9-12 Cases][Iron Lined]

2204054

$3 008,24 Unit Price incl. VAT

2

PIN-DOWEL M6X10

5136879

$4,19 Unit Price incl. VAT

3

SEAL BALANCE SHAFT

3610144

$14,69 Unit Price incl. VAT

4

PLUG

7052337

$6,29 Unit Price incl. VAT

5

PLUG-3/8 NPT HX/SOC W/SEALANT

7052413

$8,39 Unit Price incl. VAT

6

PLUG-HEX SOCKET 1/4X18 SEALANT

7518835

$10,49 Unit Price incl. VAT

7

BEARING MAIN UPPER FRONT

3514534

$20,99 Unit Price incl. VAT

8

BEARING MAIN UPPER CENTER

3514535

$20,99 Unit Price incl. VAT

9

SCREW

7518804

$5,76 Unit Price incl. VAT

10

SCREW

7518805

$10,49 Unit Price incl. VAT

11

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$7,34 Unit Price incl. VAT

12

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$6,29 Unit Price incl. VAT

13

SEAL CRANKSHAFT

3610152

$73,49 Unit Price incl. VAT

14

Seal Crankshaft

3610151

$36,74 Unit Price incl. VAT

15

SEAL BALANCE SHAFT

3610144

$14,69 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
