1
Engine displacement
500
2
Year
2008
3
Trim
SCRAMBLER 500 4X4 INTL - A08BG50FA
4
Parts Catalog

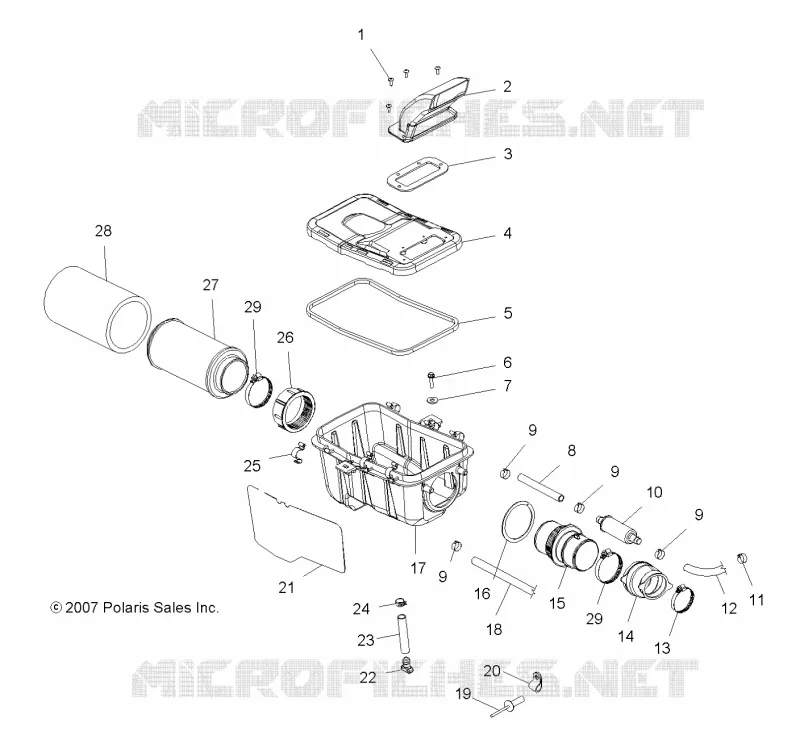

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
TAIL LIGHT
by
ENGINE, CRANKSHAFT AND PISTON
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
1
2
2
3
3
3
3
4
4
5
6
7
8
9
1
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
2
Duct Inlet
5436944
Not Available
3
GASKET INTAKE
5411422
$10,49 Unit Price incl. VAT
4
Cover Air Box
5432868
$104,99 Unit Price incl. VAT
5
Seal Air Box Cover
5812829
5813949
$52,49 Unit Price incl. VAT
6
Screw
7515180
Not Available
7
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
8
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
9
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
10
FILTER BREATHER IN LINE
2530029
$11,54 Unit Price incl. VAT
11
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
12
HOSE BRTHR FORMED W/CHAFE
5411847
Not Available
13
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
14
BOOT CARB 500 HYBRID
5411414
Not Available
15
DUCT CARB.INLET
5432473
Not Available
16
GASKET CARB.IN.DUCT
5830128
Not Available
17
BOX AIR INT 4-STROKE
5432774
$230,99 Unit Price incl. VAT
18
HOSE BRTHR SLIT 63CM 3/8I.D
5411873
Not Available
19
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
20
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
21
Foil [If built after 10/5/05]
5813042
$36,74 Unit Price incl. VAT
22
Plug Trap
5435299
$12,59 Unit Price incl. VAT
23
FUEL LINE
8450059150
$115,49 Unit Price incl. VAT
24
CLAMP HOSE (10)
7080650
$7,34 Unit Price incl. VAT
25
CLIP-AIR BOX
5242044
$17,84 Unit Price incl. VAT
26
COLLAR CARB INLET
5432601
$24,14 Unit Price incl. VAT
27
FILTER AIR INTAKE
7080595
7083107
$51,23 Unit Price incl. VAT
28
Filter Pre-Cleaner Sleeve
5811633
$19,20 Unit Price incl. VAT
29
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
