FRONT SUSPENSION SHOCK
5

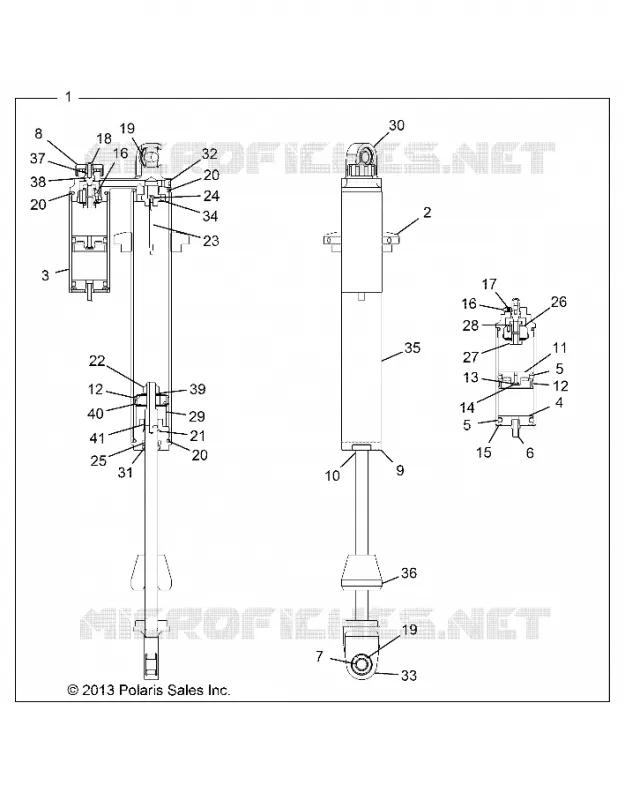

Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
CAM CHAIN AND TENSIONER
FRONT SUSPENSION SHOCK
1
1
2
3
4
5
5
5
6
7
8
9
40
11
12
13
14
15
16
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
1
SHOCK FRONT LH
7043979
$1 349,24 Unit Price incl. VAT
1
SHOCK FRONT RH
7044018
$1 349,24 Unit Price incl. VAT
2
NUT SPRING
1800514
$136,49 Unit Price incl. VAT
3
RES BODY 2.0 5.0L (ANODIZE BLACK)
1800575
$194,24 Unit Price incl. VAT
4
END CAP RESERVOIR
1800574
Not Available
5
O-RING
1800184
$10,49 Unit Price incl. VAT
6
VALVE SCHRAEDER
1800021
$89,24 Unit Price incl. VAT
7
SPHERICAL BEARING 1.0OD X .50 ID W TEFLON
1800616
$108,14 Unit Price incl. VAT
8
KNOB CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
9
SEALHEAD
1800596
$188,99 Unit Price incl. VAT
10
KIT FRONT SHOCK SVC. [INCL. SHAFT AND PISTON ASM.]
2205916
$377,99 Unit Price incl. VAT
11
PISTON RESERVOIR
1800355
$152,24 Unit Price incl. VAT
12
BAND PISTON
1800185
$83,99 Unit Price incl. VAT
13
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
14
SCREW BLEED
1800043
$12,59 Unit Price incl. VAT
15
SNAP RING 1.75 ID
1800159
$10,49 Unit Price incl. VAT
16
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
17
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
18
SCREW BTN HD
1800357
$6,29 Unit Price incl. VAT
19
SNAP RING END BEARING
1800041
$15,74 Unit Price incl. VAT
20
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
21
O-RING SHAFT SEAL HEAD BROWN
1800655
$13,64 Unit Price incl. VAT
22
NUT CRIMP (CASTLE) 42567
1800164
$17,84 Unit Price incl. VAT
23
NEEDLE
1800300
$47,24 Unit Price incl. VAT
24
SCREW BLEED W/O-RING
1800074
$7,34 Unit Price incl. VAT
25
SEAL U-CUP BLACK
1800656
$62,99 Unit Price incl. VAT
26
PISTON CLICKER
1800217
$104,99 Unit Price incl. VAT
27
BOLT CLICKER
1800219
$20,99 Unit Price incl. VAT
28
WASHER
1800050
$7,34 Unit Price incl. VAT
29
hydro droop spacer
1800598
$104,99 Unit Price incl. VAT
30
2IN 45 DEG PB BL RH PASS [USED IN 7044784]
1800594
$435,74 Unit Price incl. VAT
30
LH DRIVER 45DEG PB BL [USED IN 7044783]
1800595
$435,74 Unit Price incl. VAT
31
WIPER 5/8# D/TYPE- BLK
1800034
$68,24 Unit Price incl. VAT
32
PLUG PIPE 1/8#
1800599
$29,39 Unit Price incl. VAT
33
EXT SHAFTLOOP .625THD 1IN BEARING
1800600
$388,49 Unit Price incl. VAT
34
BOLT NEEDLE
1800601
$73,49 Unit Price incl. VAT
35
2.0 CO BODY 12.55L
1800602
$482,99 Unit Price incl. VAT
36
BUMP STOP MCU 2.0Dia x 1.75L (ISC 140100-A) [USED IN 7044900]
1800603
$136,49 Unit Price incl. VAT
37
STUD CLICKER
1800352
$57,74 Unit Price incl. VAT
38
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
39
WASHER
1800187
$10,49 Unit Price incl. VAT
41
BUSHING SHAFT
1800038
$24,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
