1
Engine displacement
400
2
Year
1987
3
Trim
nor-400-sks-n870559
4
Parts Catalog
OIL PUMP 400 (4912701270051A)
5

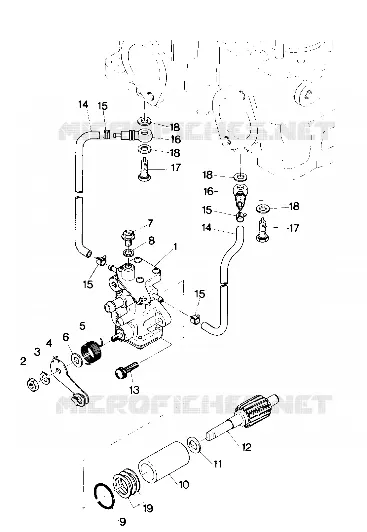

Parts Diagram
Parts Catalog
OlL PUMP Trail (4912701270050A)
by
OIL PUMP 600 (4912701270052A)
OIL PUMP 400 (4912701270051A)
1
PUMP OIL (Incl. 2-9)
3083296
Not Available
2
NUT
3083120
$6,29 Unit Price incl. VAT
3
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
4
LEVER CONTROL
3083372
$29,28 Unit Price incl. VAT
5
SPRING-RETURN
3083123
Not Available
6
COLLAR CAMSHAFT Substituted by 3083445
3083404
Not Available
7
SCREW-AIR VENT
3083125
Not Available
8
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
9
O RING
3083127
Not Available
10
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
11
SPACER
3083130
$3,14 Unit Price incl. VAT
12
GEAR SMALL OIL PUMP
3083131
5141635
$141,74 Unit Price incl. VAT
13
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
14
PIPE RUBBER(L=145) Substituted by 3083534
3083163
Not Available
15
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
16
VALVE-CHECK Substituted by 3040139
3083136
Not Available
17
BOLT-BANJO
3083137
Not Available
18
WASHER(10) Substituted by 7555998
3083138
7555998
$2,09 Unit Price incl. VAT
19
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
19
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
19
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
