WISHBONES FOR TRAIL BOSS 330 - A06CA32AA FROM 2006

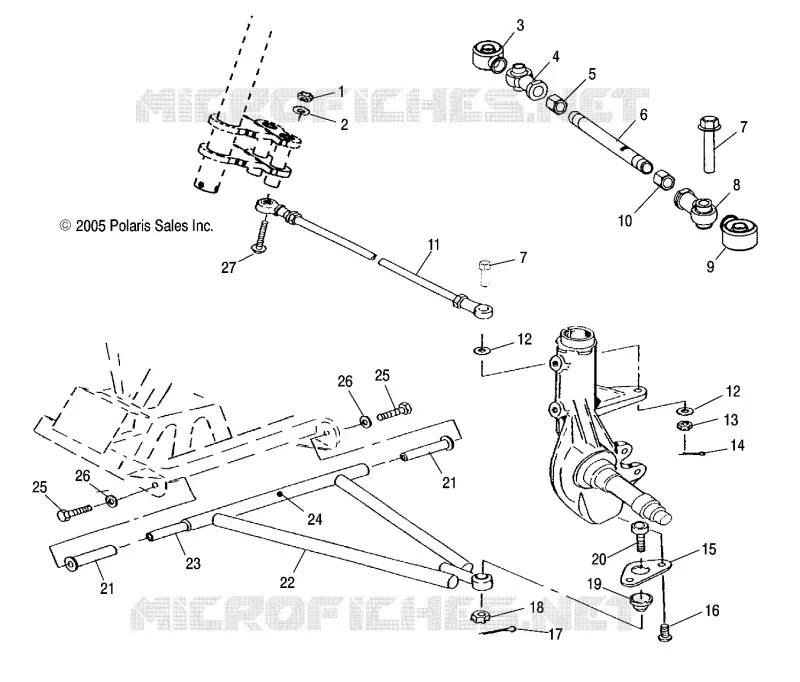

WISHBONES

1

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

2

WASHER

7558403

$9,44 Unit Price incl. VAT

3

Boot Seal Rod End

5411291

$20,99 Unit Price incl. VAT

3

BOOT-SEAL ROD END 1/2 IN

5412928

$20,99 Unit Price incl. VAT

4

ROD-END 3/8 1/2-20RH 44DEG

7061139

$115,49 Unit Price incl. VAT

4

Rod End

7061034

$115,49 Unit Price incl. VAT

5

NUT-1/2-20 HX JM-Y

7542711

$4,19 Unit Price incl. VAT

6

ROD-TIE 1/2-20X12.21

5134242

$83,99 Unit Price incl. VAT

7

SCR-HXFL-M10X1.25X65 10.9 ZY3

7517909

$10,49 Unit Price incl. VAT

8

ROD-END 10MM 1/2-20LH 42 DEG

7061138

$104,99 Unit Price incl. VAT

8

ROD END [INCL. 1]

7061054

$104,99 Unit Price incl. VAT

9

BOOT SEAL ROD END

5411920

$20,99 Unit Price incl. VAT

9

BOOT-SEAL ROD END 10MM

5412929

$20,99 Unit Price incl. VAT

10

NUT-1/2-20 LH JAM

7547028

$4,19 Unit Price incl. VAT

11

Asm. Tie Rod [Incl. 3-8][If built after 1/01/05]

1821498

$204,74 Unit Price incl. VAT

11

ASM-TIE ROD 1/2-20X14.16 [INCL. 2-8]

1822851

$204,74 Unit Price incl. VAT

12

WASHER-FL 10.7X21.9X2.5-Y

7556099

$3,14 Unit Price incl. VAT

13

NUT-M10X1.25-HX-LOCK-Y(10)

7547177

$1,56 Unit Price incl. VAT

14

COTTER PIN(10)

7661407

$9,44 Unit Price incl. VAT

15

BRACKET-BALL JOINT

5211121

$62,99 Unit Price incl. VAT

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$2,09 Unit Price incl. VAT

17

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

18

NUT-3/8-24 HX CA GR5-Y

7542438

$3,14 Unit Price incl. VAT

19

BOOT RUBBER

5410548

$9,44 Unit Price incl. VAT

20

BALL-JOINT 52 DEG ATV (If built after 11/01/00)

7080927

$52,49 Unit Price incl. VAT

21

Bushing A-Arm Long

5434551

$9,44 Unit Price incl. VAT

22

Kit A-Frame LH [Incl. 22 25 26]

2202278

Not Available

22

Kit A-Frame RH [Incl. 22 25 26]

2202279

Not Available

23

Shaft A-Arm

5133806

$52,49 Unit Price incl. VAT

24

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

25

SCREW

7512492

$2,09 Unit Price incl. VAT

26

Washer .105

7555832

$4,19 Unit Price incl. VAT

27

BOLT (If built after 12/03/01)

7518033

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
