1
Engine displacement
700
2
Year
1999
3
Trim
700-xcr-099ab7bs
4
Parts Catalog
CARBURETOR
5

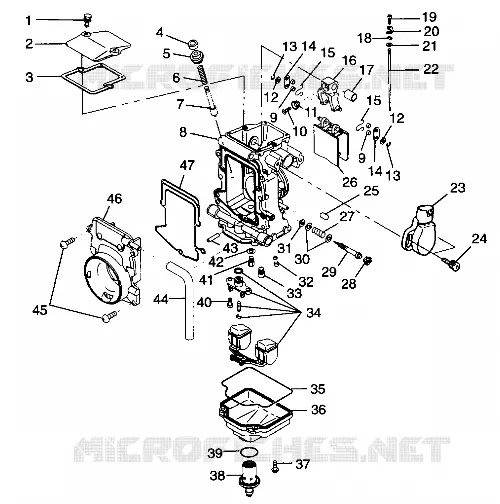

Parts Diagram
Parts Catalog
CARBURETOR
by
OIL PUMP
CARBURETOR
1
2
3
4
5
6
7
8
9
9
10
10
10
10
11
12
12
13
13
14
14
15
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
44
44
45
8
47
1
SCREW
3130951
$7,34 Unit Price incl. VAT
2
CAP-TOP
3130976
Not Available
3
GASKET
3130871
$36,74 Unit Price incl. VAT
4
CAP RUBBER
3130831
$13,64 Unit Price incl. VAT
5
HOLDER GUIDE
3130830
$62,99 Unit Price incl. VAT
6
SPRING
3130829
$26,24 Unit Price incl. VAT
7
ASM. PLUNGER
3130828
$68,24 Unit Price incl. VAT
9
RING
3130845
$18,89 Unit Price incl. VAT
10
SCREW
3130850
$9,44 Unit Price incl. VAT
10
SCREW
3130854
$6,29 Unit Price incl. VAT
11
RING
3130848
$68,24 Unit Price incl. VAT
12
WASHER Substituted by 3130846
3130981
3130846
$9,44 Unit Price incl. VAT
13
E-RING
3130847
$18,89 Unit Price incl. VAT
14
PLATE
3130857
$15,74 Unit Price incl. VAT
15
CLIP
3130856
$15,74 Unit Price incl. VAT
16
ASM. LEVER
3130849
$120,74 Unit Price incl. VAT
16
ASM. LEVER
3130855
$120,74 Unit Price incl. VAT
17
RING
3140032
Not Available
18
E-RING
3130868
$18,89 Unit Price incl. VAT
19
SCREW
3130844
$7,34 Unit Price incl. VAT
20
PLATE
3130843
$18,89 Unit Price incl. VAT
21
PACKING Substituted by 3130867
3130974
3130867
$10,49 Unit Price incl. VAT
22
NEEDLE-JET (9CG01-54-3)
3131014
Not Available
23
SENSOR ASM. (MAG Side)
3131009
$503,99 Unit Price incl. VAT
24
Screw [MAG Side] [TPS SCREW]
3131010
$9,44 Unit Price incl. VAT
25
CAP
3130479
$31,49 Unit Price incl. VAT
26
PISTON VALVE ASM. Substituted by 3130789
3131002
$209,99 Unit Price incl. VAT
27
SPRING
3130836
$15,74 Unit Price incl. VAT
28
CAP
3130986
$18,89 Unit Price incl. VAT
29
ADJUSTER
3130987
$47,24 Unit Price incl. VAT
30
WASHER
3130837
$6,29 Unit Price incl. VAT
31
PACKING
3130835
$4,19 Unit Price incl. VAT
32
JET PILOT #50(10) Substituted by 3130629 (No. 50)
3130069
$15,74 Unit Price incl. VAT
33
JET PILOT #145
3130769
$18,89 Unit Price incl. VAT
34
FLOAT ASM. Substituted by 3130859
3130977
3130859
$152,24 Unit Price incl. VAT
35
O-RING
3130861
$20,99 Unit Price incl. VAT
36
BODY FLOAT
3130858
$188,99 Unit Price incl. VAT
37
SCREW
3130824
$6,29 Unit Price incl. VAT
38
NIPPLE DRAIN SCREW
3130862
Not Available
39
O-RING
3130863
$4,19 Unit Price incl. VAT
40
SCREW
3130860
$15,74 Unit Price incl. VAT
41
JET MAIN HX.HD#430(10) (#430)
3130143
$15,74 Unit Price incl. VAT
42
WASHER
3130949
Not Available
43
JET Substituted by 3130778
3131012
Not Available
44
HOSE (Center and MAG Side)
3131080
Not Available
44
HOSE (PTO Side)
3131079
Not Available
45
SCREW
3130825
$6,29 Unit Price incl. VAT
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
O-RING AIR FUNNEL LONG
3130870
$41,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
