1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6 TRACTOR
4
Parts Catalog
SUSPENSION, TORSION BAR
5

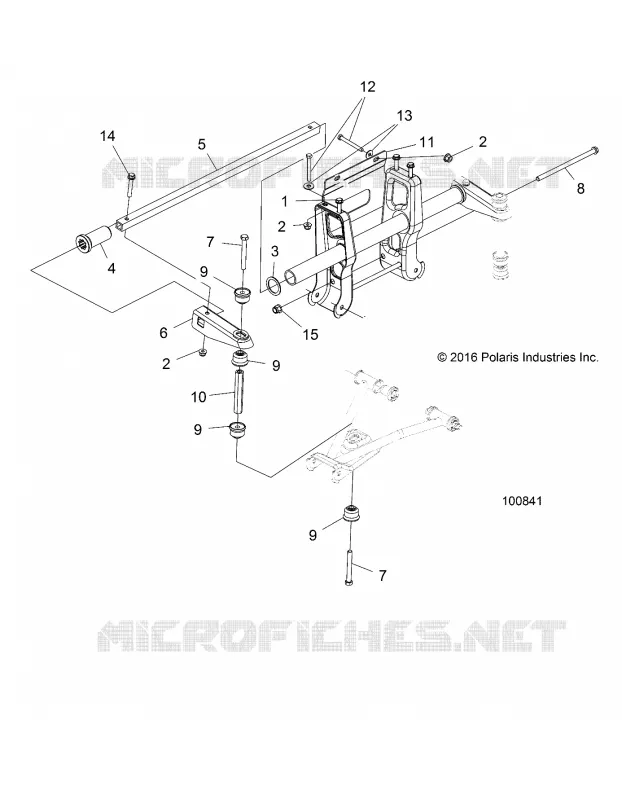

Parts Diagram
Parts Catalog
REAR SUSPENSION
by
TOOL KIT
SUSPENSION, TORSION BAR
1
2
2
2
3
4
5
6
7
7
8
9
9
9
9
10
11
12
13
14
15
1
2
3
4
4
4
4
5
6
1
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
2
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
3
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
4
BUSHING STABILIZER TUBE BLACK
5438901
$16,79 Unit Price incl. VAT
5
BAR STABILIZER TUBE MATTE BLACK
5334114329
$178,49 Unit Price incl. VAT
6
ARM STABILIZER BAR MATTE BLACK
1543119458
$62,99 Unit Price incl. VAT
7
SCREW(10)
7517231
$13,64 Unit Price incl. VAT
8
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
$13,64 Unit Price incl. VAT
9
BUSHING [TO 1/13/2020]
5414877
5415885
$6,29 Unit Price incl. VAT
10
ROD LINKAGE STABILIZER
5020827
$99,74 Unit Price incl. VAT
11
SUPPORT STABILIZER M. BLACK
1542677458
$141,74 Unit Price incl. VAT
12
SCREW
7515346
$10,49 Unit Price incl. VAT
13
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
14
Screw Flange
7518876
$7,34 Unit Price incl. VAT
15
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
