1
Engine displacement
900
2
Year
2014
3
Trim
RGR 4X4 900D HIPPO MPS - R14WH9EMD
4
Parts Catalog

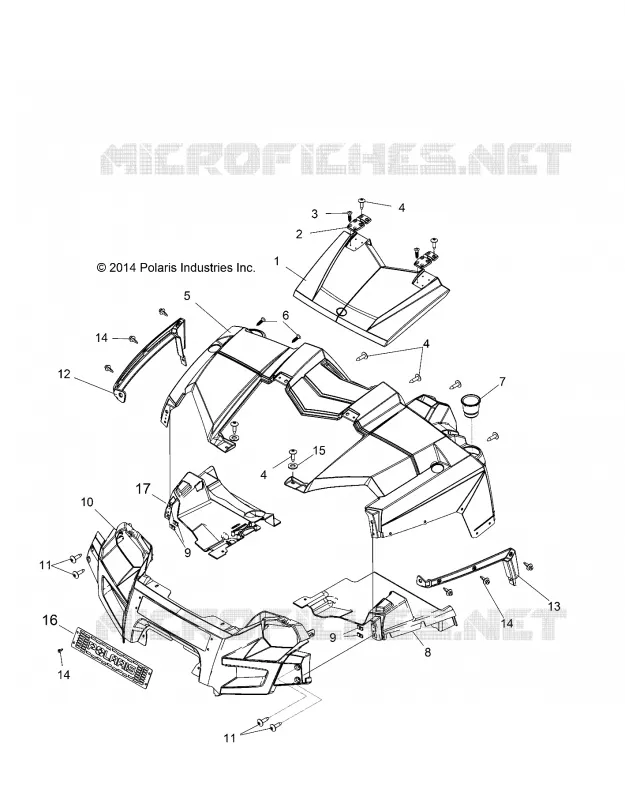

HOOD AND FRONT FASCIA
5
Parts Diagram
Parts Catalog
GLOVE BOX
by
TAILGATE ASM.
HOOD AND FRONT FASCIA
1
2
3
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
14
15
16
17
1
HOOD-CTR ACCESS RNGR SGEBRSH M [A1]
5438256498
$330,74 Unit Price incl. VAT
2
ASM-HINGE
5437902
$19,94 Unit Price incl. VAT
3
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
4
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
5
HOOD W/DASH SAGE BRUSH METALLIC
5438815498
Not Available
6
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
7
HOLDER-CUP
5436836
$36,74 Unit Price incl. VAT
8
LINER HOOD LH BLACK
5450397070
Not Available
9
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
10
FASCIA FRONT BLACK
5450398070
Not Available
11
SCR-1/4-20X1.50 TR/TX-M
7518375
$2,09 Unit Price incl. VAT
12
FENDER-FRONT W/FLARE RH BLK
5437569070
$68,24 Unit Price incl. VAT
13
FENDER-FRONT W/FLARE LH BLK
5437568070
$68,24 Unit Price incl. VAT
14
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
15
WASHER-.281X1.00X.051
7556329
$2,09 Unit Price incl. VAT
16
PLATE GRILLE FRONT MPS MATTE BLACK
5257521458
$85,88 Unit Price incl. VAT
17
LINER HOOD MPS RH BLACK
5450498070
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
