1
Engine displacement
850
2
Year
2019
3
Trim
850 PRO-RMK 155 / SC SELECT
4
Parts Catalog

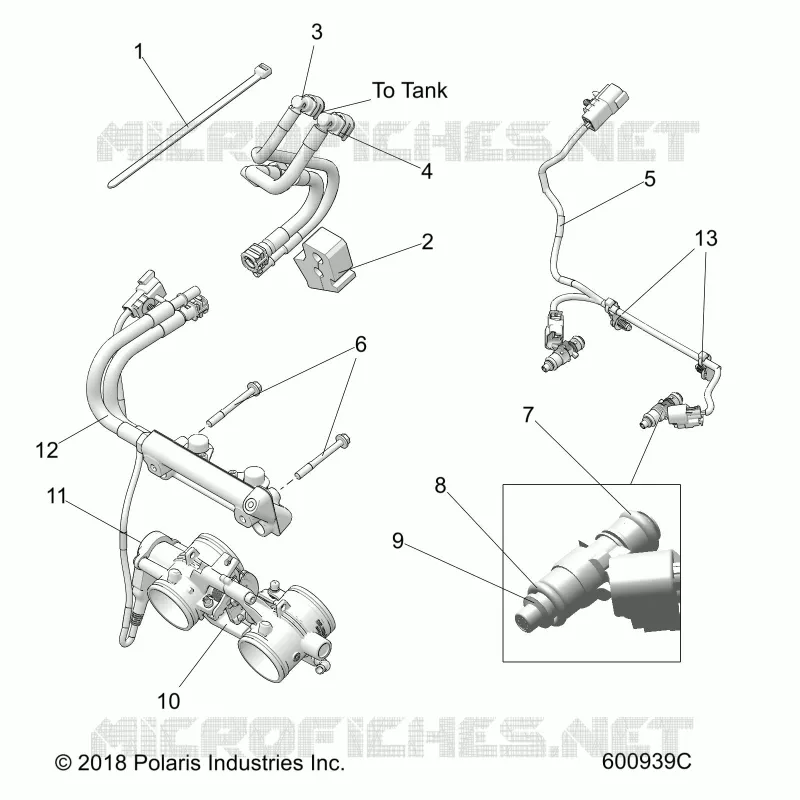

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
SUSPENSION, REAR TORQUE ARM
by
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
1
2
3
4
5
6
7
8
9
10
11
12
13
1
CABLE TIE
7080356
$4,19 Unit Price incl. VAT
2
FOAM-BLOCK FUEL LINES/INTAKE
5814703
$8,39 Unit Price incl. VAT
3
ASM. FUEL LINE RETURN PFA CONV
2521794
$325,49 Unit Price incl. VAT
4
ASM. FUEL LINE SUPPLY PFA CONV
2521793
$115,49 Unit Price incl. VAT
5
HARNESS INJECTOR WITH LEAD
4017536
4082753
$503,99 Unit Price incl. VAT
6
SCR-M7X1.00X63 HX/SOC/SEMS10.9
7520849
$9,44 Unit Price incl. VAT
7
O-RING-BOSCH EV-14 UPPER BLUE
1500198
$20,25 Unit Price incl. VAT
8
O-RING
5412891
$2,09 Unit Price incl. VAT
9
BUSHING RUBBER
5436287
$6,29 Unit Price incl. VAT
10
ASM. THROTTLE BODY 50MM
1205875
$913,49 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
ASM. FUEL RAIL AS
2521918
2522184
$782,24 Unit Price incl. VAT
13
CABLE TIE-90DEG OFFSET TREE
7082537
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
