1
Engine displacement
0
2
Year
1997
3
Trim
ultra-sp-0970678
4
Parts Catalog

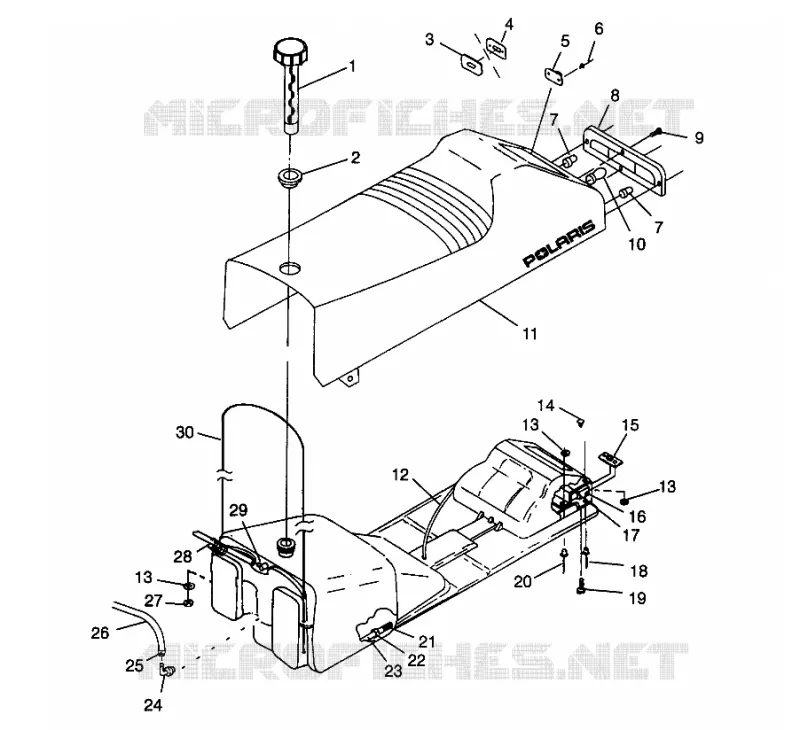

SEAT GAS TANK ULTRA SP 0970678 (4938093809A006)
5
Parts Diagram
Parts Catalog
TUNNEL ULTRA SP 0970678 (4938093809A005)
by
NOSEPAN ULTRA SP 0970678 (4938093809A007)
SEAT GAS TANK ULTRA SP 0970678 (4938093809A006)
1
1
2
3
4
5
6
7
7
8
9
10
11
11
11
11
12
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
28
29
30
1
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
1
CAP GAS W/GAUGE
2511248
$83,99 Unit Price incl. VAT
2
GROMMET FUELTANK
5410842
Not Available
3
GROMMET RELATCH 1# BOTT.(10)
7080550
Not Available
4
GROMMET RELATCH 1# TOP(10)
7080549
Not Available
5
TWISTLOCK RELATCH 1# W/HOLE(10)
7080548
Not Available
6
RIVET(50)
7621337
$2,09 Unit Price incl. VAT
7
BULB TAILLIGHT(10)
4030024
$9,44 Unit Price incl. VAT
8
LENS TAILLIGHT
5430423
Not Available
9
SCREW(10)
7511840
Not Available
10
BULB BRAKELIGHT
4030045
Not Available
11
COVER ASM SEAT STD
2682121
Not Available
11
SEAT ASM STD.
2681995
Not Available
12
HARNESS TAILLIGHT
2460398
Not Available
13
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
14
CLIP DART (10)
7670097
Not Available
15
NUT RETAINER-WELD.(10)
7542147
$30,96 Unit Price incl. VAT
16
HOUSING TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Not Available
17
COVER T/L PROTECTOR
5431436
$34,32 Unit Price incl. VAT
18
RIVET(50)
7621301
Not Available
19
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
20
RIVET(50)
7621464
Not Available
21
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
22
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
23
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
24
FITTING OUT 90 DEG DOUBLE
7052143
Not Available
25
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
26
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
27
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
28
SPRING PROTECT.VENTHOSE
7041605
Not Available
28
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
29
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
30
CABLE TANK RETENTION
7080559
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
