1
Engine displacement
550
2
Year
2014
3
Trim
SPORTSMAN 550 EPS/XP EPS - A14ZN5EAB/C/M/S
4
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER

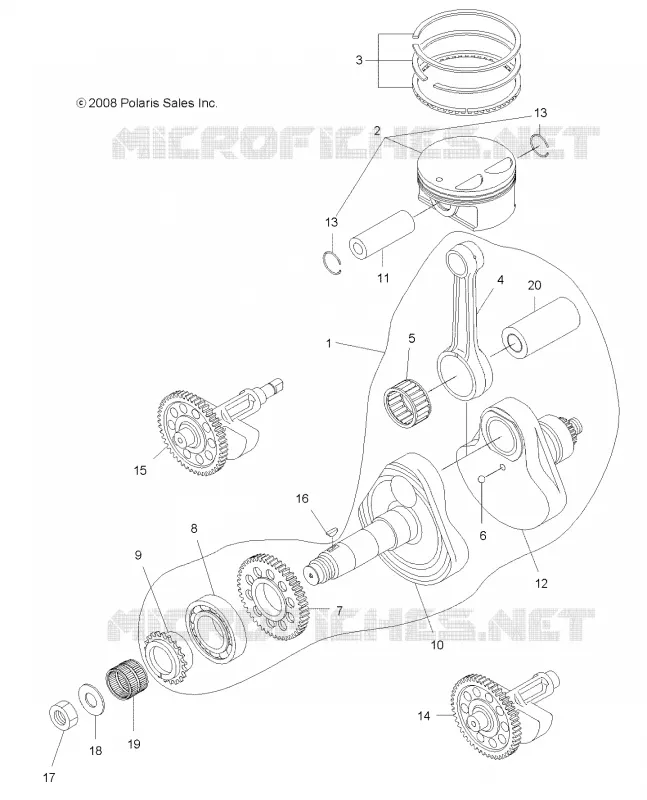

ENGINE, CRANKSHAFT AND PISTON
1
2
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
1
Asm. Crankshaft [Incl. 4-10 12 20]
3090301
$1 606,49 Unit Price incl. VAT
2
Piston Set Std. [Incl. Piston Qty 2 of #13]
3090173
Not Available
2
Piston Set .25 OS [Incl. Piston Qty 2 of #13]
3090174
$242,54 Unit Price incl. VAT
2
Piston Set .50 OS [Incl. Piston Qty 2 of #13]
3090175
$242,54 Unit Price incl. VAT
3
Ring Piston Set .50 OS [Incl. Qty 1 Top Middle Lower Ring]
3090177
Not Available
3
Ring Piston Set Std. [Incl. Qty 1 Top Middle Lower Ring]
3090110
$108,14 Unit Price incl. VAT
3
Ring Piston Set .25 OS [Incl. Qty 1 Top Middle Lower Ring]
3090176
$108,14 Unit Price incl. VAT
4
Rod Connecting
3090172
Not Available
5
Bearing End Large
3085343
$121,79 Unit Price incl. VAT
6
BALL STEEL
3085024
$12,59 Unit Price incl. VAT
7
Gear Balancer Drive
3090211
Not Available
8
BEARING BALL
3080676
$54,59 Unit Price incl. VAT
9
ASM. BAND ADAPTER [INCL. 2]
3090108
Not Available
10
Crankshaft 1
3090302
$596,39 Unit Price incl. VAT
11
Pin Piston
3090109
$89,24 Unit Price incl. VAT
12
Crankshaft 2
3090170
$290,84 Unit Price incl. VAT
13
CLIP(10)
3085534
Not Available
14
Shaft Balancer 1
3090212
Not Available
15
Shaft Balancer 2
3090213
Not Available
16
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
17
Nut
3090113
Not Available
18
Washer
3090114
$14,69 Unit Price incl. VAT
19
Bearing Needle
3087976
$34,64 Unit Price incl. VAT
20
Pin Crank
3090171
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
