Parts Catalog

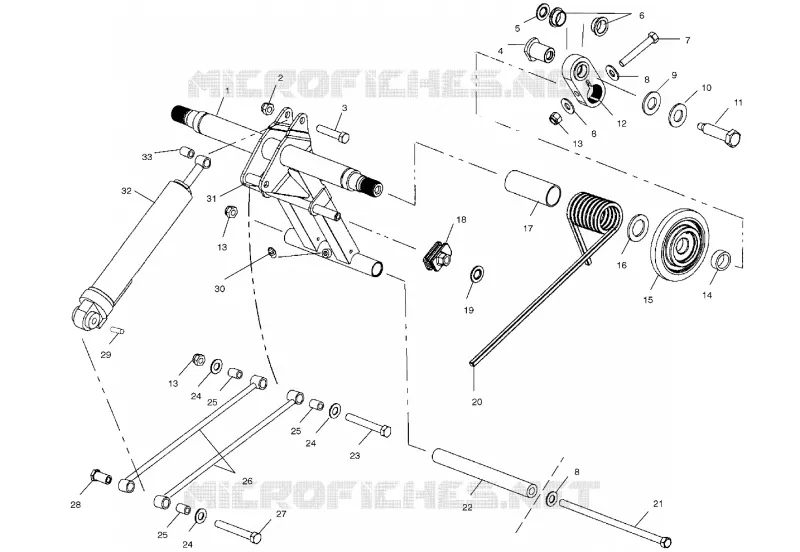

REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
BRAKE
by
FOX SHOCK
REAR TORQUE ARM
13
13
13
14
15
16
17
18
19
20
20
20
20
20
20
21
22
23
24
24
24
25
25
25
26
27
28
29
30
31
32
33
1
WELD-REAR TORQUE ARM BLK
1541561067
Not Available
2
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
3
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
4
SHAFT-ARM
5333758
Not Available
5
WASHER THRUST
7555945
$11,54 Unit Price incl. VAT
6
BUSHING-ARM
3514331
$34,64 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
WASHER
7555806
$1,56 Unit Price incl. VAT
9
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
10
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
11
BOLT
7517435
$22,56 Unit Price incl. VAT
12
ARM ASM RTA (Incl. 5)
1541461
$178,49 Unit Price incl. VAT
13
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
14
SPACER WHEEL
5132388
Not Available
15
ASM. CARRIER WHEEL
1590343
$141,74 Unit Price incl. VAT
16
WASHER THRUST
7555787
$10,49 Unit Price incl. VAT
17
SLEEVE TORSION SPRING
5431923
$11,54 Unit Price incl. VAT
18
ROLLER SPRING ADJUSTABLE SQUARE
5432983
$19,94 Unit Price incl. VAT
19
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
20
SPRING-TORS .405SQ/77 LH BLK
7041940067
$209,99 Unit Price incl. VAT
20
SPRING-TORS .405SQ/77 RH BLK
7041941067
$209,99 Unit Price incl. VAT
20
SPRING TORSION .359/77 BLACK RH [STD]
7041630067
7041630-329
$209,99 Unit Price incl. VAT
20
SPRING TORSION .359/77 BLACK LH [STD]
7041629067
7041629-329
$209,99 Unit Price incl. VAT
20
SPRING TORSION .375 SQ./77 RH BLACK
7041943067
7041943-329
$209,99 Unit Price incl. VAT
20
SPRING TORSION .375 SQ./77 LH BLACK
7041942067
7041942-329
$220,49 Unit Price incl. VAT
21
SCREW
7517232
$36,74 Unit Price incl. VAT
22
SHAFT .740X.390X7.055 6066
5333873
Not Available
23
BOLT
7515514
$13,64 Unit Price incl. VAT
24
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
25
BUSHING
5132391
$13,64 Unit Price incl. VAT
26
SHOCK ROD 12.850 BLK
1541479067
$89,24 Unit Price incl. VAT
27
SCREW
7517851
$11,54 Unit Price incl. VAT
28
BUSHING NUT.616X1.12X.875
5132390
$40,94 Unit Price incl. VAT
29
SLEEVE .385X.560X1.30
5333907
$27,29 Unit Price incl. VAT
30
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
31
SPACER .397X.562X1.250
5333904
Not Available
32
Shock Rear Track PPS
7042129
Not Available
33
Bushing .385 ID
5010422
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
