1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP 850 INTL - A09ZN85FL/8CFL
4
Parts Catalog

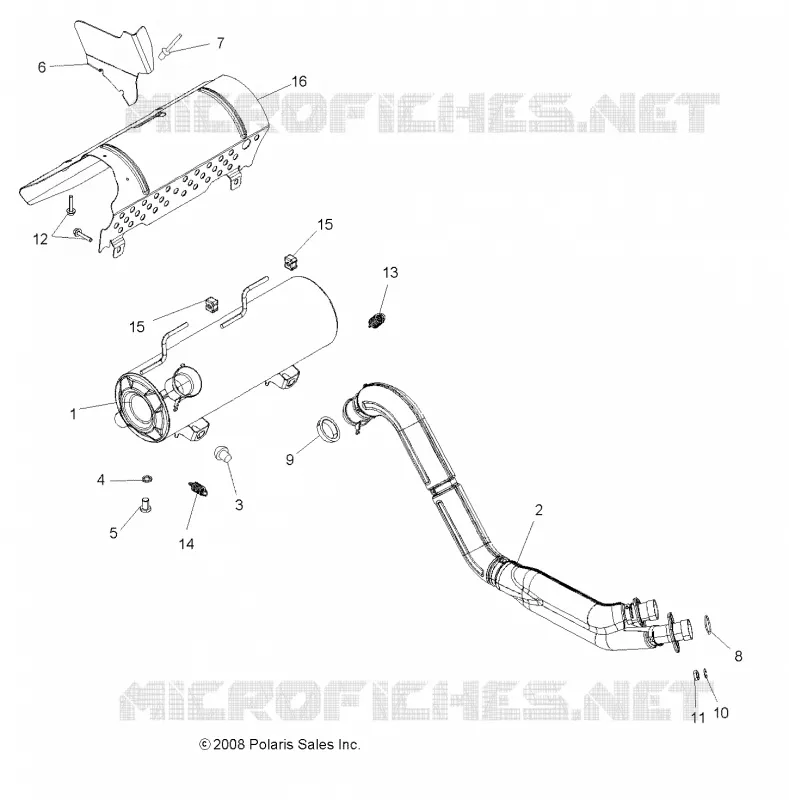

EXHAUST
5
Parts Diagram
Parts Catalog
COOLING BYPASS
by
ENGINE, MOUNTING
EXHAUST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
1
2
3
3
4
4
5
6
7
1
Silencer Exhaust Black [Incl. 4 5]
1261780489
Not Available
2
ASM. EXHAUST PIPE [INCL. PIPE SHIELDS 2]
1261874
Not Available
3
Dampener Vibration w/Ribs
5413466
Not Available
4
WASHER
7556004
$13,64 Unit Price incl. VAT
5
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
6
SHIELD EXHAUST
5252515
$68,24 Unit Price incl. VAT
7
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
8
Gasket
3087957
$52,49 Unit Price incl. VAT
9
Seal Exhaust
3610156
$31,49 Unit Price incl. VAT
10
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
11
Nut
3087295
Not Available
12
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
13
SPRING-EXHAUST
7041789
$16,79 Unit Price incl. VAT
14
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
15
GROMMET SILENCER MOUNT
5413383
$9,44 Unit Price incl. VAT
16
Shield Box Storage
5252266
$188,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
