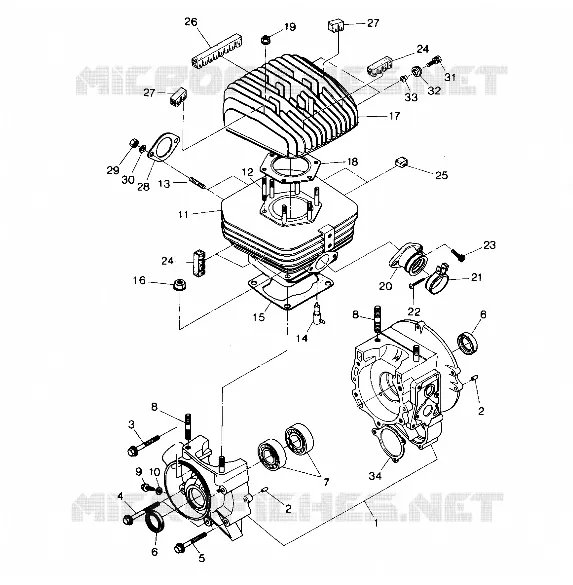

CRANKCASE AND CYLINDER (4914891489031A) FOR TRAIL BOSS 250 R/ES

REAR BRAKE ASSEMBLY 1988 TRAIL BOSS UPDATE-4/14/88 (4914891489030A)

RECOIL STARTER ASSEMBLY (4914891489037A)

TANK FUEL Substituted by 2511323

5430968

Not Available

CRANKCASE ASM. Substituted by 3084579 (Incl. 2-10)

3083836

Not Available

PIN DOWEL Substituted by 3086838

3080103

$13,64 Unit Price incl. VAT

GASKET-GAS CAP

5810144

$10,49 Unit Price incl. VAT

BOLT AND WASHER ASSY.

3082096

$2,61 Unit Price incl. VAT

CAP GAS (BLACK)

5430725

$47,24 Unit Price incl. VAT

BOLT&WASHER ASSY. (Touring Only)

3083615

Not Available

Vent Tank

5431053

$47,24 Unit Price incl. VAT

LINE VENT (38.0##) Substituted by 8360009-600

5521087

8360009-600

$83,99 Unit Price incl. VAT

BOLT W/WASHER

3080739

$11,54 Unit Price incl. VAT

SEAL OIL Substituted by 3082162

3080006

$73,49 Unit Price incl. VAT

BOLT

7512310

$4,19 Unit Price incl. VAT

BALL BEARING Substituted by 3083805

3082836

Not Available

STUD Substituted by 3085713

3080746

7520776

$6,29 Unit Price incl. VAT

SCREW(10)

7512208

$7,34 Unit Price incl. VAT

PLUG DRAIN

3083767

Not Available

BRKT R.TANK MT. Substituted by 5220916-067

5220916

Not Available

GASKET ALUM (10) Substituted by 7555998

3082758

7555998

$2,09 Unit Price incl. VAT

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

CYLINDER (Incl. 12-14)

3083897

Not Available

DUCT INLET DOWN TUBE

5431006

$132,29 Unit Price incl. VAT

STUD

3080283

$26,24 Unit Price incl. VAT

STUD (10)

3080016

$9,23 Unit Price incl. VAT

SCREW SELF-TAP(10)

7522004

Not Available

LEVER FUEL

5431021

$9,44 Unit Price incl. VAT

VALVE CHECK Substituted by 3086785

3083337

7051020

$68,24 Unit Price incl. VAT

GASKET CYLINDER

3083733

$73,49 Unit Price incl. VAT

SPRING LEVER COMPRESS.

7041209

$15,74 Unit Price incl. VAT

LEVER EXT. FUEL

5431020

Not Available

NUT FLANGE

3082911

7547013

$3,14 Unit Price incl. VAT

HEAD CYLINDER [No Longer Available]

3083898

Not Available

CLAMP

7080236

$3,14 Unit Price incl. VAT

GASKET HEAD

3083768

Not Available

LINE FUEL (6 FT.)

5521204

Not Available

NUT-FLANGE(10)

3082910

Not Available

GASKET FUEL VALVE

5810308

Not Available

VALVE FUEL Substituted by 7051002

7052046

Not Available

ADAPTER Substituted by 3084325

3083171

Not Available

PAD

5810317

Not Available

ASM. BAND ADAPTOR [INCL. 9]

3083166

7082340

$36,74 Unit Price incl. VAT

WASHER SPRING LOCK

7552801

$3,14 Unit Price incl. VAT

SCREW Substituted by 3081497

3083086

$4,19 Unit Price incl. VAT

BOLT SOCKET HEAD

3081330

$7,34 Unit Price incl. VAT

BOLT BLACK(10)

7512282

$2,09 Unit Price incl. VAT

FIN DAMPER #1 Substituted by 3083929

3083621

Not Available

PAD SILENCER

5810423

Not Available

FIN DAMPER #2 Substituted by 3083930

3083622

Not Available

FIN DAMPER #3 [No Longer Available]

3083623

Not Available

FIN DAMPER #4 [No Longer Available]

3083624

Not Available

GASKET EXHAUST

3083770

Not Available

NUT(10)

3080285

Not Available

WASHER LOCK (10)

3080530

$6,29 Unit Price incl. VAT

ASM. BOLT AND WASHER

3083730

$9,44 Unit Price incl. VAT

MOUNTING RUBBER

3083731

$7,97 Unit Price incl. VAT

COLLAR

3083732

Not Available

GASKET

3083835

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
