Engine displacement
400
2
Year
2002
3
Trim
SCRAMBLER 400 2X4 - A02BA38CA
4
Parts Catalog

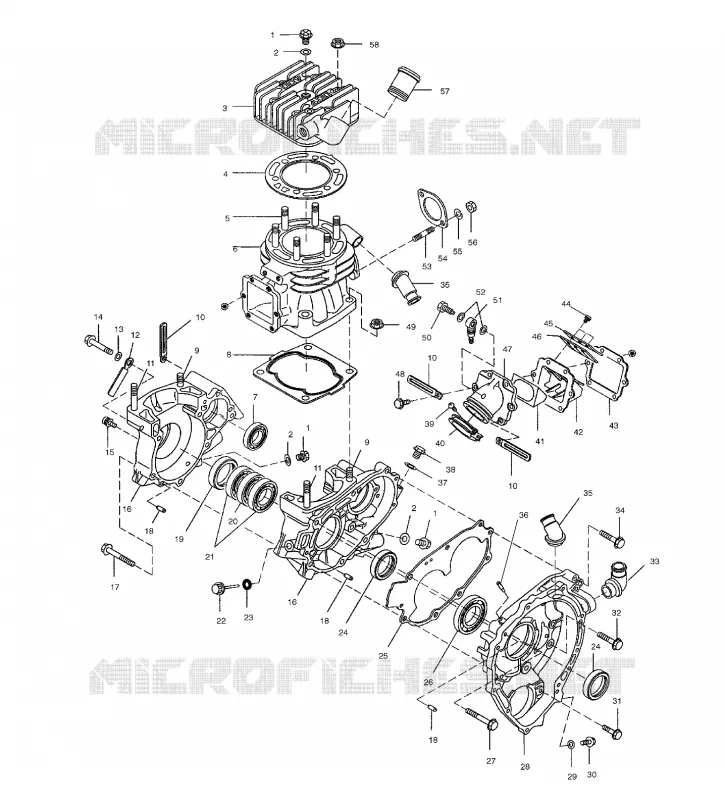

CRANKCASE AND CYLINDER
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON
by
OIL PUMP
CRANKCASE AND CYLINDER
1
1
1
2
2
2
3
4
5
6
7
8
9
9
10
10
10
11
11
12
13
14
15
16
16
17
18
18
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
6
7
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
PLUG Substituted by 3083767
3086744
$7,76 Unit Price incl. VAT
2
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
3
CYLINDER-HEAD (Incl. 8)
3086755
Not Available
4
GASKET HEAD (Head)
3084731
Not Available
5
STUD
3084138
Not Available
6
CYLINDER (Incl. 2 12 13)
3086753
Not Available
7
BEARING BALL
3084123
Not Available
8
GASKET CYLINDER
3084729
$89,24 Unit Price incl. VAT
9
STUD
3084119
$17,84 Unit Price incl. VAT
10
CLAMP
3083590
$7,34 Unit Price incl. VAT
11
STUD
3084118
Not Available
12
CLAMP
3083384
Not Available
13
WASHER(10)
3080142
Not Available
14
BOLT FLANGE
3084124
Not Available
15
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
16
ASM-CRANKCASE (See Footnote)
3086740
Not Available
17
BOLT-FLANGE
3086742
Not Available
18
PIN-DOWEL Substituted by 3080103
3086741
$13,64 Unit Price incl. VAT
19
SEAL OIL
3084725
Not Available
20
BEARING BALL
3084775
$74,54 Unit Price incl. VAT
21
BEARING BALL
3084121
$68,24 Unit Price incl. VAT
22
GAUGE-OIL
3086761
Not Available
23
O-RING
3084733
Not Available
24
SEAL OIL
3084120
Not Available
25
GASKET-CASE 3
3086748
Not Available
26
BEARING BALL
3084131
Not Available
27
BOLT FLANGE
3084134
Not Available
28
CRANKCASE 3 (See Footnote)
3086745
$743,39 Unit Price incl. VAT
29
GASKET ALUMINUM(10)
3083482
Not Available
30
PLUG Substituted by 3085152
3086750
Not Available
31
BOLT-FLANGE Substituted by 3084126
3086743
Not Available
32
BOLT-FLANGE Substituted by 3084435
3086752
Not Available
33
Pipe 2 Elbow
3086747
Not Available
34
SCREW
3086751
Not Available
35
PIPE-1 ELBOW
3086746
$73,07 Unit Price incl. VAT
36
PIPE BREATHER (Breather)
3084128
Not Available
37
GASKET
3082956
$9,44 Unit Price incl. VAT
38
PLUG
3086749
Not Available
39
SCREW
3081497
$4,19 Unit Price incl. VAT
40
BAND ASM. (Adapter)
3084144
Not Available
41
STUFFER (REED VALVE ASM.)
3240164
$15,95 Unit Price incl. VAT
42
VALVE ASM. REED
3084147
Not Available
43
GASKET-REED VALVE Substituted by 3084148
3086760
Not Available
44
SCREW&WASHER Substituted by 3084565
3240066
Not Available
45
STOPPER
3240065
Not Available
46
VALVE REED(10)
3240064
Not Available
47
ADAPTER CARB.
3085277
Not Available
48
Bolt Flange
3087150
Not Available
49
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
50
BOLT-BANJO Substituted by 3083137
3086758
Not Available
51
VALVE CHECK
3083894
Not Available
52
WASHER(10) Substituted by 7555998
3083138
7555998
$2,09 Unit Price incl. VAT
53
STUD (10)
3085326
Not Available
54
GASKET-EXHAUST
3086757
Not Available
55
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
56
NUT Substituted by 3080285
3086787
Not Available
57
PIPE-WATER Substituted by 3083452
3086756
Not Available
58
NUT-FLANGE(10)
3082910
Not Available
