CRANKSHAFT AND PISTON ASSEMBLY (4918531853036A) FOR TRAIL BOSS 350L 2X4 - W907539 FROM 1990

CRANKCASE AND CYLINDER (4918531853035A)

OIL PUMP ASSEMBLY (4918531853037A)

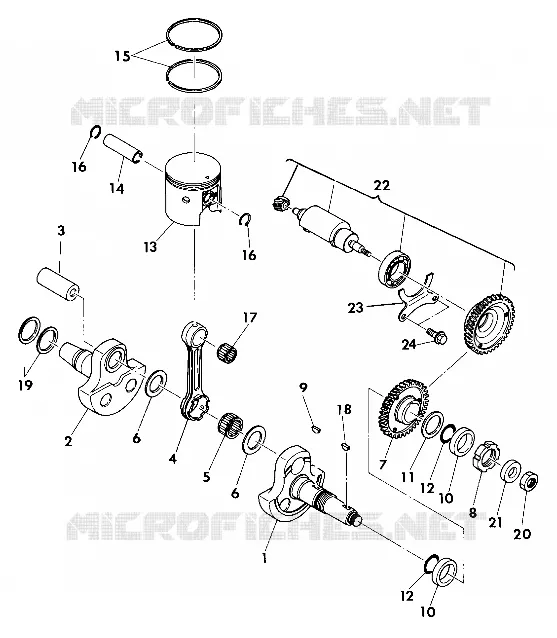

CRANKSHAFT AND PISTON ASSEMBLY (4918531853036A)

1

CRANKSHAFT #1 MAG SIDE

3084149

$278,24 Unit Price incl. VAT

2

CRANKSHAFT #2 PTO SIDE

3084151

Not Available

3

PIN CRANK #1

3084152

$125,99 Unit Price incl. VAT

4

ROD CONNECTING

3084153

Not Available

5

BEARING LARGE END

3084154

Not Available

6

SPACER CRANK PIN (Crank Pin)

3084155

Not Available

7

GEAR DRIVE * (Drive)

3084156

Not Available

8

NUT SLIT Substituted by 3086762 (Slit)

3084157

Not Available

9

KEY WOODRUFF

3081543

$26,24 Unit Price incl. VAT

10

COLLAR Substituted by 3086763

3084158

Not Available

11

WASHER GUIDE Substituted by 3086764

3084159

Not Available

12

O RING

3084160

Not Available

13

PISTON (STD.)

3084161

Not Available

13

PISTON (.020 O/S)

3084163

Not Available

13

PISTON (.010 O/S) *

3084162

Not Available

14

PIN PISTON

3083838

$356,99 Unit Price incl. VAT

15

RING PISTON (.020 O/S)

3084166

Not Available

15

RING PISTON (STD.)

3084164

Not Available

15

RING PISTON (.010 O/S)

3084165

Not Available

16

CLIP PISTON PIN

3084167

$356,99 Unit Price incl. VAT

17

BEARING SMALL END

3084168

$54,59 Unit Price incl. VAT

18

KEY Substituted by 3081543

3080130

$26,24 Unit Price incl. VAT

19

SPACER #1 (0.2)

3084169

Not Available

19

SPACER #2 (0.3)

3084170

Not Available

20

LOCKNUT

3083905

Not Available

21

WASHER

3084171

Not Available

22

BALANCER Substituted by 3087042

3084172

Not Available

23

PLATE Substituted by 3086768

3084173

$41,04 Unit Price incl. VAT

24

BOLT FLANGE Substituted by 3086769

3084174

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
