1
Engine displacement
925
2
Year
2016
3
Trim
RZR XP TURBO MD
4
Parts Catalog

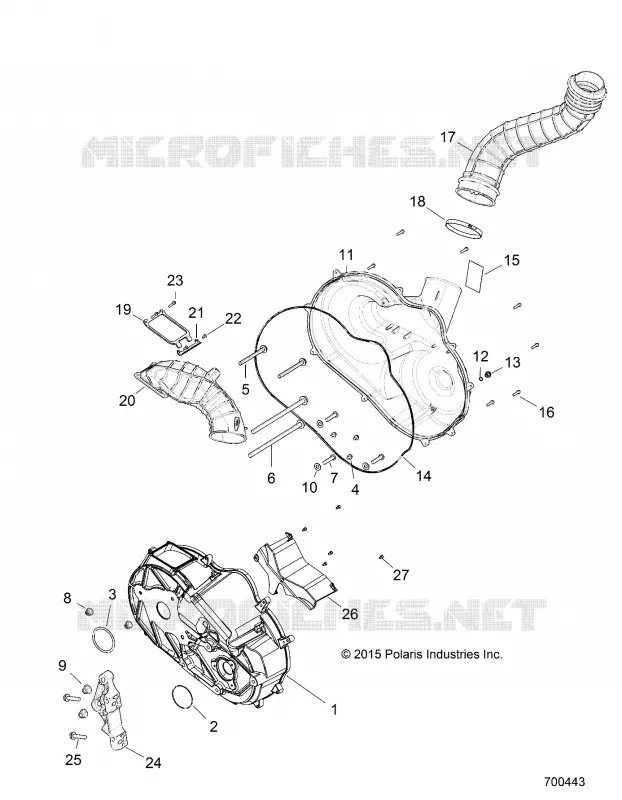

DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
by
BATTERY
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
27
1
COVER-CLUTCH INNER MACH [INCL. 26 27]
2635800
2636329
$524,99 Unit Price incl. VAT
2
O-RING
5415646
5813708
$41,99 Unit Price incl. VAT
3
O-RING-0.489X0.629X0.070 EPDM
5415647
$3,14 Unit Price incl. VAT
4
SCREW-HXFLGHD M6X12
7517886
$3,14 Unit Price incl. VAT
5
SCR-HXFL-M10X1.5X115 8.8 ZY3
7518526
$5,76 Unit Price incl. VAT
6
SCR-M12X1.75X250 8.8 HX/FL ZOD
7518970
$41,99 Unit Price incl. VAT
7
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$10,49 Unit Price incl. VAT
8
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
9
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$9,44 Unit Price incl. VAT
10
WSHR-10.5X22.0X1.6 SPC
7556155
$9,44 Unit Price incl. VAT
11
ASM-COVER CLUTCH OUTER [INCL 12 13]
2635722
2636330
$346,49 Unit Price incl. VAT
12
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
13
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
14
SEAL-OUTER CLUTCH COVER
5415793
$68,24 Unit Price incl. VAT
15
DECAL-BELT WARNING/CHECK
7177469
Not Available
16
SCR-HXFLG M6X1.0X25 10.9
7519754
$7,34 Unit Price incl. VAT
17
DUCT-CLUTCH INLET
5415509
$136,49 Unit Price incl. VAT
18
CLAMP-WORM DRIVE .44WX4.25 DIA
7080741
$36,74 Unit Price incl. VAT
19
MOUNT-PLATE OUTLET DUCT
5261467
$52,49 Unit Price incl. VAT
20
DUCT-CLUTCH OUTLET
5415510
$115,49 Unit Price incl. VAT
21
MOUNT-BRKT OUTLET DUCT
5261466
Not Available
22
SCREW-FLHD-M5X0.8X12 10.9 P&O
7517255
$13,64 Unit Price incl. VAT
23
SCREW-SH-M5X0.8X25 A2 SPC
7518086
$10,49 Unit Price incl. VAT
24
BRKT-TRANSJOINT MAG MACH
5139822
5144809
$89,24 Unit Price incl. VAT
25
SCR-HXFL-M10X1.5X1.5 8.8 ZY3
7518531
$9,44 Unit Price incl. VAT
26
BAFFLE-COVER CLUTCH INNER MACH
5139918
$40,94 Unit Price incl. VAT
27
SCR-SH-M5X0.8X8 8.8 P&O
7517515
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
