Asm. Gearcase
1341470
Not Available
-
Asm. Gearcase (If built after 1/04/05)
1332348
Not Available
1
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
2
SCREW
3233826
$17,84 Unit Price incl. VAT
3
COVER SECTOR GEARS MACHINED
3234188
$209,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
O-RING -014
3233869
$10,49 Unit Price incl. VAT
6
PAWL DETENT
3233829
$68,24 Unit Price incl. VAT
7
SHAFT SHIFT
3233831
$115,49 Unit Price incl. VAT
8
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
9
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
10
Label Oil Fill/Level Check
3234143
Not Available
11
Gearcase Main
3234128
$801,14 Unit Price incl. VAT
12
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
13
CHAIN SILENT 34P
3233036
Not Available
14
Shaft Input
3234133
Not Available
15
BEARING
3233019
$54,59 Unit Price incl. VAT
16
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
17
Gearcase LH
3234221
$666,74 Unit Price incl. VAT
17
Cover Main LH
3234127
Not Available
18
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
19
Seal
3233874
$57,74 Unit Price incl. VAT
20
SCREW
3234042
$13,64 Unit Price incl. VAT
21
Bracket Transmission Mount
3234142
$52,49 Unit Price incl. VAT
22
Drum Shift
3234211
$482,99 Unit Price incl. VAT
23
O-RING
3233548
$52,49 Unit Price incl. VAT
24
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
25
SUB-ASM. SHIFT FORK W/PIN
3234220
$309,74 Unit Price incl. VAT
25
Fork Shift w/Pin
3234141
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
RAIL SHIFT SHAFT
3233860
$99,74 Unit Price incl. VAT
28
PLATE PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
29
Engagement Dog
3234040
$299,24 Unit Price incl. VAT
30
SPRING WAVE
3234144
$52,49 Unit Price incl. VAT
31
ENGAGEMENT DOG
3233875
$309,74 Unit Price incl. VAT
32
RING RETAINING
3233850
$19,94 Unit Price incl. VAT
33
WASHER
3233851
$19,94 Unit Price incl. VAT
34
GEAR LOW 67T
3233852
$456,74 Unit Price incl. VAT
35
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
36
Shaft Reverse
3233853
Not Available
37
SPROCKET 38T 6-FACE
3233854
$257,24 Unit Price incl. VAT
38
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
39
Gear 23T
3234135
Not Available
40
Gear 51T
3234136
$440,99 Unit Price incl. VAT
41
Gear 56T
3234137
Not Available
42
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
43
COVER BEARING CENTER DRIVE
3234122
$120,74 Unit Price incl. VAT
44
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
45
SPACER
3233357
$36,74 Unit Price incl. VAT
46
BEARING BALL 6305RSH2 C3 25MMX62MMX17MM
3235328
$54,59 Unit Price incl. VAT
47
SUB-ASM. GROUND SPIRAL BEVEL [INCL. REF. 28 FROM DRIVE TRAIN MAIN GEARCASE INTERNAL PAGE]
3234911
$734,99 Unit Price incl. VAT
48
PLUG 3/4-16 41775 INTERNAL HEX
3233794
$31,49 Unit Price incl. VAT
49
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
50
Sprocket 22T/18T
3233873
$188,99 Unit Price incl. VAT
51
SUB-ASM. GROUND SPIRAL BEVEL [INCL. REF. 28 FROM DRIVE TRAIN MAIN GEARCASE INTERNAL PAGE]
3234911
$734,99 Unit Price incl. VAT
52
SHAFT OUTPUT MAIN REAR
3233911
$325,49 Unit Price incl. VAT
53
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
54
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
55
SHIM
3233611
$52,49 Unit Price incl. VAT
56
Cover Output Front
3234130
$482,99 Unit Price incl. VAT
57
SHAFT OUTPUT MAIN FRONT
3233625
$262,49 Unit Price incl. VAT
58
Chain
3233784
$173,24 Unit Price incl. VAT
59
SPROCKET 22T
3233844
$220,49 Unit Price incl. VAT
60
BEARING
3233552
$41,99 Unit Price incl. VAT
61
Clamp Tie
3234013
Not Available
62
Lockout Park
3233917
Not Available
63
NUT LOCK
3234043
$10,49 Unit Price incl. VAT
64
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
65
DISC LOCKOUT
3233838
$52,49 Unit Price incl. VAT
66
Star Detent
3234082
$68,24 Unit Price incl. VAT
67
O-RING 2-012
3233076
$11,54 Unit Price incl. VAT
68
SPRING COMPRESSION 0.36 O.D. X 1.125
3233830
$19,94 Unit Price incl. VAT
69
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
70
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
71
Bellcrank
3233906
Not Available

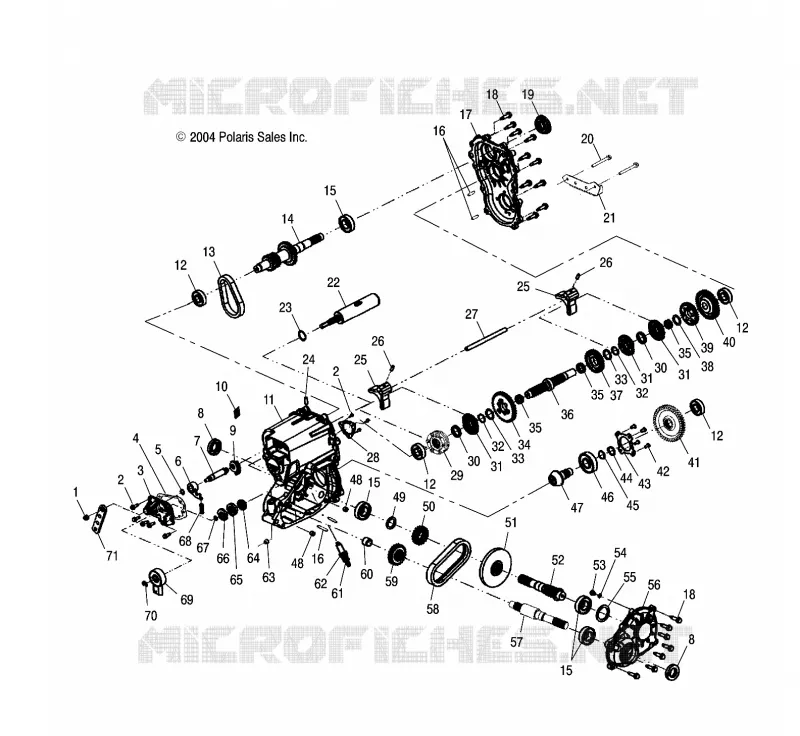

Find the detailed GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
