1
Engine displacement
600
2
Year
2004
3
Trim
A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW
4
Parts Catalog

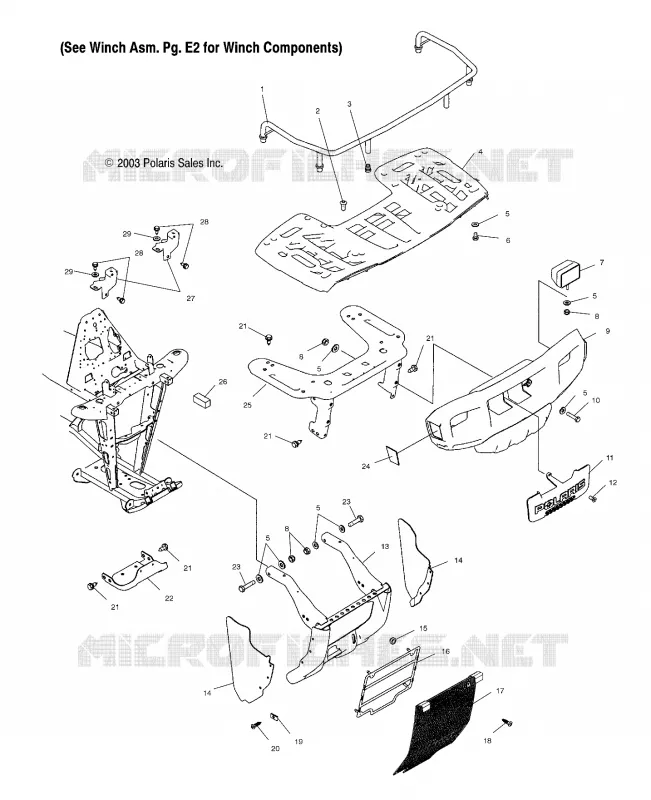

FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
FRONT HOUSING
by
DECALS
FRONT RACK BUMPER MOUNTING
1
2
3
4
4
5
5
5
5
5
5
6
7
7
8
8
8
9
9
10
11
12
13
14
14
14
14
15
16
17
18
19
20
21
21
21
21
21
22
23
23
24
24
25
26
27
27
28
28
29
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Extender Front Rack (AP)(AQ)
1013972418
Not Available
2
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
3
NUT U-TYPE
7081085
$13,64 Unit Price incl. VAT
4
Rack Front Black
5435240070
$390,59 Unit Price incl. VAT
4
Rack Front Black [If built before 2/03/03]
5434697070
Not Available
5
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
6
Screw Flange
7517208
$3,66 Unit Price incl. VAT
7
H/L ASM 35W BOTT.MT.
2431017
Not Available
7
Bulb Replacement 27W
4030059
Not Available
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
Asm. Bumper Front Black [Incl. Warning Decal](AU)(CU)(AP)
2632757070
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
BOLT(10) Substituted by 7515352
7515306
Not Available
11
Panel
5434699070
Not Available
12
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
13
Guard Brush
1014412067
Not Available
14
Shield Side Radiator LH
5434314
$68,24 Unit Price incl. VAT
14
Shield Side Radiator RH
5434315
Not Available
15
GROMMET-RUBBER MOUNT .25#
5412504
$7,34 Unit Price incl. VAT
16
Cover Radiator (If built after 11/01/02)
5435046
$99,74 Unit Price incl. VAT
17
Grill Brush Guard
5247507067
$99,74 Unit Price incl. VAT
18
Screw
7518046
$9,44 Unit Price incl. VAT
19
NUT U-TYPE
7670094
$10,49 Unit Price incl. VAT
20
Screw
7512097
$7,34 Unit Price incl. VAT
21
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
22
Bracket Bumper Lower
5245767067
Not Available
23
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
24
Decal Reflector Amber RH
7171475
Not Available
24
Decal Reflector Amber LH
7171474
Not Available
25
Support Front Rack
1014020067
$335,99 Unit Price incl. VAT
26
Plug Frame
5810467
Not Available
27
Support Front Rack LH
1014261067
Not Available
27
Support Front Rack RH
1014262067
Not Available
28
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
29
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
