FRONT STRUT FOR SPORTSMAN 335 - A00CH33AD FROM 2000

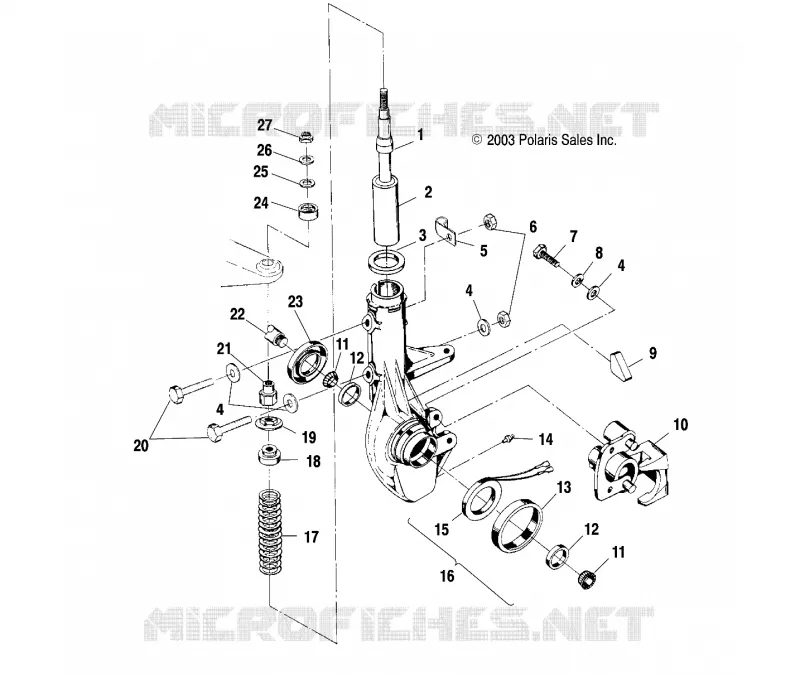

FRONT STRUT

1

BUMPER-MCU 17.80MM ID (After 11/2/98)

5411608

$12,59 Unit Price incl. VAT

2

Strut Front

7041761

$283,49 Unit Price incl. VAT

3

WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]

5211115

$7,34 Unit Price incl. VAT

4

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

5

CLAMP RUBBER-COATED .562(10)

7080573

$13,64 Unit Price incl. VAT

6

NUT FLEX-LOC(10)

7542303

$11,54 Unit Price incl. VAT

7

SCREW CAP(10) [CALIPER MOUNTING]

7512365

$2,09 Unit Price incl. VAT

8

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

9

RETAINER WIRE STRUT CAST

5810439

Not Available

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

BEARING TAPERED ROLLER

3554509

$40,94 Unit Price incl. VAT

12

BRG TAPER ROLL CUP

3554507

$54,59 Unit Price incl. VAT

13

SLEEVE STRUT HUB SEAL

5222193

$120,74 Unit Price incl. VAT

14

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

15

Coil Magnetic

2410133

$241,49 Unit Price incl. VAT

16

HUBSTRUT SVC BRN/WHT 42 LH (Incl. 8 11-14 22)

2201311

Not Available

16

HUBSTRUT SVC BRN/WHT 42 RH (Incl. 8 11-14 22)

2201312

Not Available

17

Spring Compression

7041375067

$120,74 Unit Price incl. VAT

18

RETAINER-SPRING STRUT

5243364

$36,74 Unit Price incl. VAT

19

PIVOT-BALL BOTTOM DELRIN

5432871

$19,94 Unit Price incl. VAT

20

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$9,44 Unit Price incl. VAT

21

SPACER-1/2-20 STRUT

5132062

$36,74 Unit Price incl. VAT

22

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

23

SEAL HUB STRUT

3610028

$57,74 Unit Price incl. VAT

24

PIVOT-BALL TOP DELRIN

5432872

$19,94 Unit Price incl. VAT

25

SPACER-RUBBER

5810291

$7,34 Unit Price incl. VAT

26

WSHR-.500X1.50-12GA-Y

7555749

$2,09 Unit Price incl. VAT

27

NUT-1/2-20 NYLOK THIN HT-Y

7547104

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
