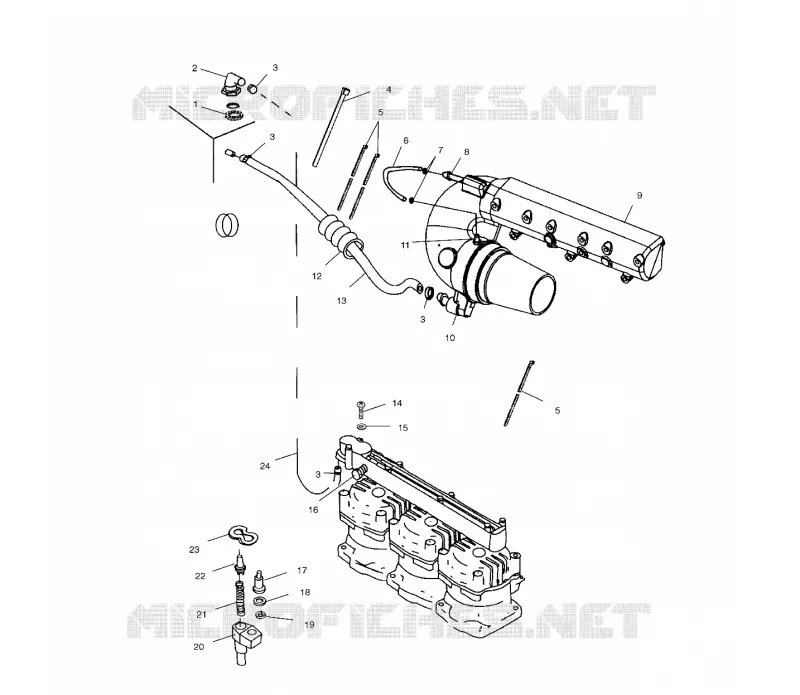

COOLING SYSTEM FOR GENESIS - W025099D FROM 2002

COOLING SYSTEM

1

GASKET-1.57ODX1.02IDX.10 BUNA

5812237

Not Available

2

FITTING-THRU HULL 90 DEG WHT

5434149133

$27,92 Unit Price incl. VAT

3

Clamp Hose

7080475

Not Available

4

STRAP CABLE(10)

7080598

Not Available

5

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

6

HOSE STINGER 12.50

5411689

$37,16 Unit Price incl. VAT

7

CLAMP HOSE S.S.(10)

7080476

$11,54 Unit Price incl. VAT

8

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

9

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

12

CONDUIT FLEX 1.250ID Substituted by 5521287-132

5521287117

Not Available

13

HOSE BILGE

5411542

Not Available

14

SCREW SHOULDER S.S.(10)

7515149

Not Available

15

WASHER(10)

7555836

$6,29 Unit Price incl. VAT

16

PLUG PIPE(10)

7051527

$10,70 Unit Price incl. VAT

17

THERMOSTAT (143 F.)

7051008

$51,54 Unit Price incl. VAT

18

GASKET-THERMOSTAT 60D

5412014

Not Available

19

WASHER-7/8X11/8X1/8 AL ANODIZE

7556174

Not Available

20

COVER-THERMOSTAT PWC HF

5631136

Not Available

21

SPRING COMPRESSION

7041310

$2,93 Unit Price incl. VAT

22

VALVE-POP OFF PWC HF

5433823

$7,97 Unit Price incl. VAT

23

SEAL O-RING/THERMO/FITTING

5410860

Not Available

24

HOSE-WATER OUT 3/4X25.5

5412116

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
