1
Engine displacement
650
2
Year
1992
3
Trim
SL 650 - B924058
4
Parts Catalog

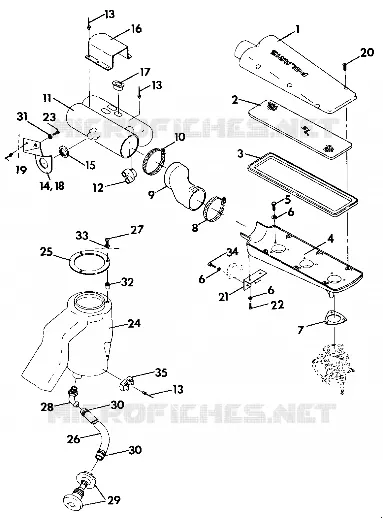

AIR VENT SL 650/B924058 (4922922292017A)
5
Parts Diagram
Parts Catalog
BATTERY SL 650/B924058 (4922922292016A)
by
COOLING SYSTEM SL 650/B924058 (4922922292018A)
AIR VENT SL 650/B924058 (4922922292017A)
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
1
INTAKE UPPER MANIFOLD
5431406157
Not Available
2
SCREEN INTAKE
5222779
Not Available
3
GASKET INT.SCREEN
5410687
Not Available
4
MANIFOLD INTAKE
5130873
$55,64 Unit Price incl. VAT
5
BOLT(10)
7516801
Not Available
6
WASHER LOCK S.S.(10)
7555838
Not Available
7
GASKET ARRESTOR/CARB.
5830013
Not Available
8
CLAMP HOSE S.S.(10)
7080457
$17,94 Unit Price incl. VAT
9
BOOT INTAKE
5410649
Not Available
10
CLAMP HOSE S.S.(10)
7080456
Not Available
11
SILENCER INTAKE
5431401
Not Available
12
TUBE UP.INTAKE
5431402
Not Available
13
RVT-3/16(.187-.375)AL-AL/BULBX
7621479
$3,66 Unit Price incl. VAT
14
BRKT RH INTAKE SILENCER
5222707
Not Available
15
GROMMET BRKT INT.SILENCER
5410660
Not Available
16
CANOPY INT.SILENCER
5710038
Not Available
17
TUBE LOW.INTAKE
5431399
Not Available
18
BRKT LH INTAKE SILENCER
5222693
Not Available
19
RIVET
7621407
$2,09 Unit Price incl. VAT
20
SCREW(10)
7512052
Not Available
21
BRKT FUEL PUMP WELD.
1060103
Not Available
22
BOLT S.S.(10)
7515121
$0,83 Unit Price incl. VAT
23
BOLT S.S.
7515365
Not Available
24
DUCT LOW.AIR INTAKE
5431370
Not Available
25
SEAL AIR INT.DUCT
5410650
$9,23 Unit Price incl. VAT
26
HOSE BULK 3/4 WATERLINE [No Longer Available]
2871057
Not Available
27
BOLT S.S.(10)
7512041
$4,08 Unit Price incl. VAT
28
ELBOW
7052073
Not Available
29
FITTING THRU HULL WATER Substituted by 5431444-133
5431444
Not Available
30
CLAMP S.S.(10)
7080470
Not Available
31
WASHER LOCK S.S.(10)
7552610
Not Available
32
NUT WELL(10)
7541901
$11,54 Unit Price incl. VAT
33
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
34
BOLT(10)
7515127
Not Available
35
RETAINER VENT HOSE
5521266
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
