1
Engine displacement
1000
2
Year
2022
3
Trim
GENERAL XP 1000 DELUXE
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5

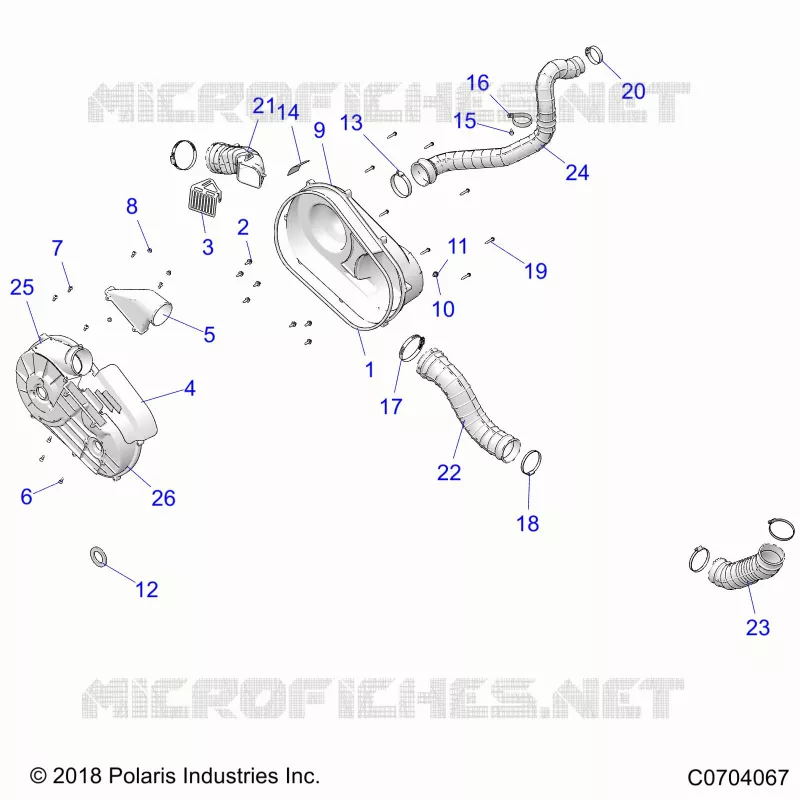

Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATES
by
DRIVE TRAIN, FRONT GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
1
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
2
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
3
BRACKET SCREEN BELT
5256732
$20,99 Unit Price incl. VAT
4
BRACKET GUARD CLUTCH COVER
5268504
$173,24 Unit Price incl. VAT
5
DUCT-CLUTCH AIR INLET
5439086
$73,49 Unit Price incl. VAT
6
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
7
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
8
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
9
K-CVR CLUTCH OTR GENERAL [INCL. 2-4]
2207414
$351,74 Unit Price incl. VAT
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
12
SEAL-COVER PTO
5813708
$41,99 Unit Price incl. VAT
13
CLAMP HOSE 3.75 SS
7080907
$20,99 Unit Price incl. VAT
14
DECAL-BELT WARNING/CHECK
7177469
Not Available
15
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
16
CLAMP-FUEL FILTER
7081129
$7,34 Unit Price incl. VAT
17
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
18
CLAMP-HOSE SLOTTED 92-100 DIA
7081969
$19,94 Unit Price incl. VAT
19
SCREW-NXFL-M6X35 ZOD HILO
7519330
$7,34 Unit Price incl. VAT
20
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
21
HOSE CLUTCH AIR OUTLET
5451061
$209,99 Unit Price incl. VAT
22
HOSE-CLUTCH INLET
5415467
$115,49 Unit Price incl. VAT
23
HOSE-INTAKE DUCT
5415468
$89,24 Unit Price incl. VAT
24
HOSE-CLUTCH SCNDRY INTK RBR
5416058
$178,49 Unit Price incl. VAT
25
DUCT CLUTCH AIR OUTLET
5450846
$83,99 Unit Price incl. VAT
26
COVER-CLUTCH INNER BLK
5454487070
$283,49 Unit Price incl. VAT
26
ASM. COVER CLUTCH INNER [INCL. 4-8 AND 26-27]
2637760
$314,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
