1
Engine displacement
0
2
Year
1995
3
Trim
RXL LT - 0956768
4
Parts Catalog

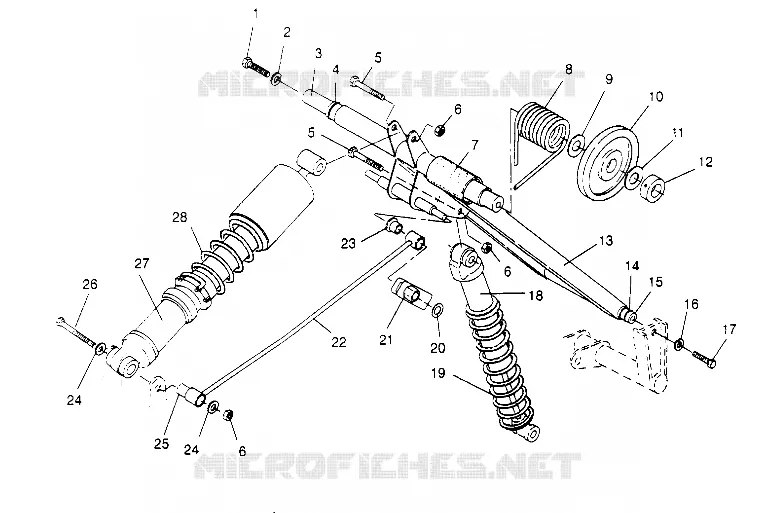

REAR TORQUE ARM RXL 0956768 (4930783078B013)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM RXL 0956768 (4930783078B012)
by
EXHAUST SYSTEM RXL 0956768 (4930783078C004)
REAR TORQUE ARM RXL 0956768 (4930783078B013)
1
BOLT(10)
7512589
$3,14 Unit Price incl. VAT
2
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
3
SHAFT UP R.TORQUE ARM
5020782
Not Available
4
O-RING
5410952
Not Available
5
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
6
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
7
SLEEVE TORSION SPRING
5431923
$11,54 Unit Price incl. VAT
8
SPRING LH TORS .421 BLK. (Firm)
7041406067
$152,76 Unit Price incl. VAT
8
SPRING LH TORSION BLK.
7041394067
Not Available
8
SPRING RH TORS .421 BLK. (Firm)
7041407067
Not Available
8
SPRING RH TORSION BLK.
7041395067
Not Available
9
WASHER THRUST
7555787
$10,49 Unit Price incl. VAT
10
WHEEL CARRIER
1543023
Not Available
11
WASHER THRUST(10) Substituted by 7555871
7555862
$10,49 Unit Price incl. VAT
12
COLLAR-BRG. LOCK
5010155
Not Available
12
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
13
ARM R.TORQUE BLK. Substituted by 1541029-067
1540887067
Not Available
14
O-RING
5410953
Not Available
15
SHAFT R.TORQUE ARM LOW.
5020784
$34,64 Unit Price incl. VAT
16
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
17
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SPRING BLACK COMP.
7041253067
Not Available
20
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
21
ROLLER SPRING ADJ.
5431909
$9,23 Unit Price incl. VAT
22
KIT SHOCK ROD XTRA 12 (Incl. 6 22 25 26)
2200623
Not Available
22
ROD SHOCK
1541014067
Not Available
23
BUSHING NYLON
3573910
Not Available
24
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
25
SPACER
5333028
$2,61 Unit Price incl. VAT
26
BOLT
7515514
$13,64 Unit Price incl. VAT
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
SPRING R.SUSP BLK LXC
7041351067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
