1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN TOURING 570 EFI/EPS
4
Parts Catalog

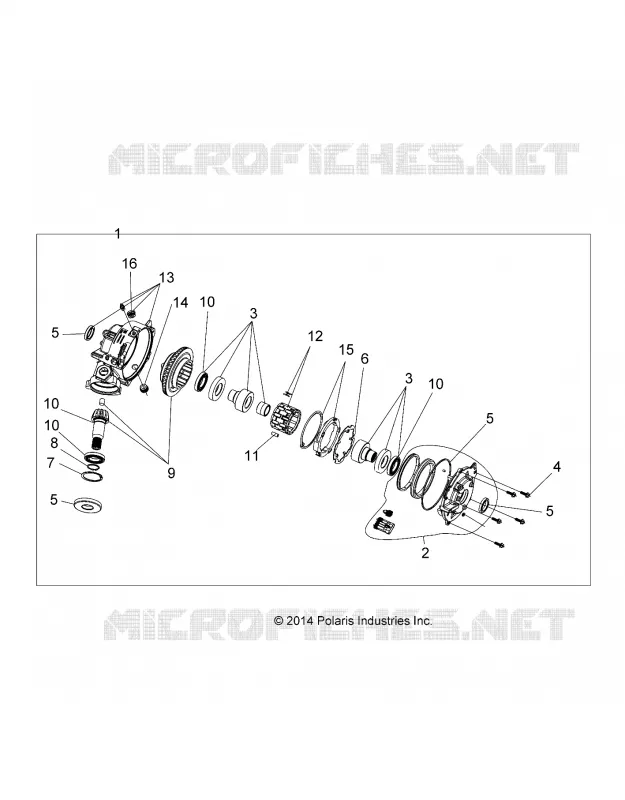

DRIVE TRAIN, FRONT GEARCASE
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, FRONT PROP SHAFT
DRIVE TRAIN, FRONT GEARCASE
1
2
3
3
4
5
5
5
5
6
7
7
9
10
10
10
10
11
12
13
14
15
16
1
2
3
4
5
6
7
7
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
1
ASM. GEARCASE FRONT 12 POCKET [INCL. ALL] [TO 11/11/2022]
1333393
$3 008,24 Unit Price incl. VAT
2
ASM. COVER OUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING]
3235162
3236663
$955,49 Unit Price incl. VAT
3
KIT OUTPUT HUB [INCL. HUB ASM. FEMALE HUB ASM. MALE]
3234936
3236672
$860,99 Unit Price incl. VAT
4
COVER-FASTENERS [INCL. SCREWS]
3235469
$25,19 Unit Price incl. VAT
5
KIT SEAL REPAIR
3235470
3236669
$136,49 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
KIT GEAR HOUSING AND PINION GEAR [TO 11/11/2022]
3235638
3239541
$1 832,24 Unit Price incl. VAT
10
BEARING
3234390
$60,89 Unit Price incl. VAT
11
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
12
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$325,49 Unit Price incl. VAT
13
ASM. GEARCASE [INCL. GEARCASE BUSHING GARLOCK BEARING FILL PLUG VENT TUBE OIL SEAL]
3235728
3236677
$997,49 Unit Price incl. VAT
14
ASM. DRAIN PLUG MAGNETIC
3234412
$83,99 Unit Price incl. VAT
15
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
16
PLUG OIL FILL
3234414
3233942
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
