1
Engine displacement
500
2
Year
1992
3
Trim
FIN 500 SKS - F920574
4
Parts Catalog

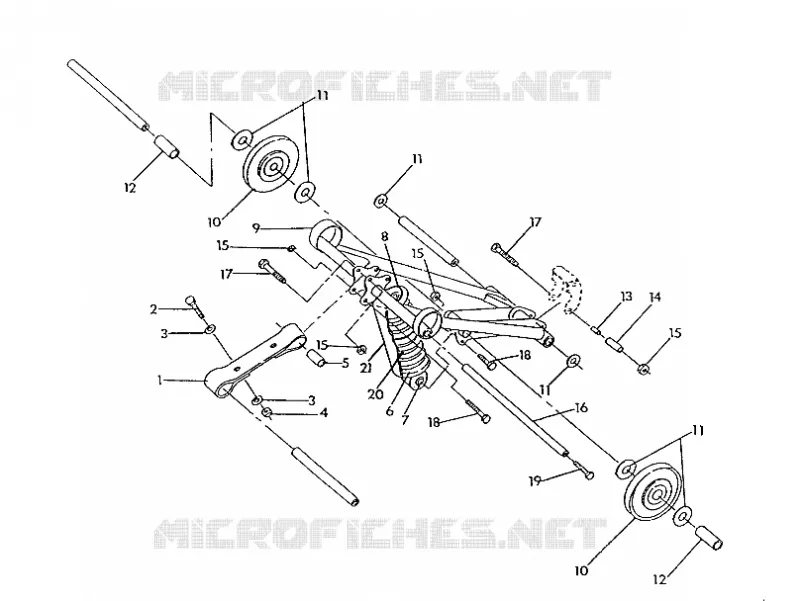

FRONT TORQUE ARM 500 SP/500 SKS (4921262126029A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 500 SP/500 SKS (4921262126017A)
by
REAR TORQUE ARM 500 SP/500 SKS (4921262126030A)
FRONT TORQUE ARM 500 SP/500 SKS (4921262126029A)
1
STRAP LIMITER
5410397
Not Available
2
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
3
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
4
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
5
BUSHING SUSPENSION
5010212
Not Available
6
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
7
SHOCK-SUSP
7041142
Not Available
8
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
9
ARM FRONT TORQUE
1540667067
Not Available
10
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
11
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
12
SPACER OUTER
5332784
Not Available
13
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
14
SPACER
5333028
$2,61 Unit Price incl. VAT
15
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
16
SHAFT MOUNTING
5010149
Not Available
17
SCREW
7515415
$2,09 Unit Price incl. VAT
18
BOLT
7515438
$9,44 Unit Price incl. VAT
19
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
20
SPRING-SHOCK
7041127
Not Available
21
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
