FRONT BRAKE (4915951595018A)
5
Parts Diagram
Parts Catalog
FRONT WHEEL ASSEMBLY (4915951595017A)
by
MIDDLE BRAKE (4915951595019A)

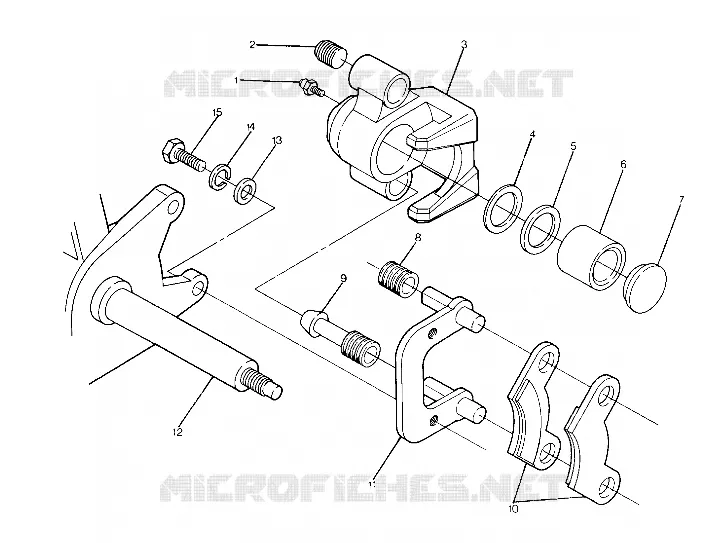

FRONT BRAKE (4915951595018A)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
-
-
1
2
3
3
3
3
3
3
3
3
3
4
6
7
7
7
7
8
9
10
11
12
12
12
12
13
14
15
-
BRAKE ASM RH FRONT Substituted by 1930664
1930640
Not Available
-
BRAKE ASM LH FRONT Substituted by 1930663
1930639
Not Available
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
1
BOLT(10)
7515321
Not Available
2
DISC BRAKE Substituted by 5211326
5211270
$167,99 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
SEAL FR. HUB
3610019
$68,24 Unit Price incl. VAT
3
CALIPER BRAKE Substituted by 5131261
5130657
$262,49 Unit Price incl. VAT
3
CALIPER BRAKE RH Substituted by 5131262
5130659
5133880
$262,49 Unit Price incl. VAT
3
KIT SEALS PISTON&INSUL. Substituted by 1930665 (Incl. 4-7)
1930641
1930665
$104,99 Unit Price incl. VAT
4
KEY
7721205
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
CLUTCH ASM FR.HUB
1520143
Not Available
6
STUD WHEEL 5/16-18(10)
7515330
Not Available
7
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
7
HUB WHEEL Substituted by 1520171
5130682
Not Available
8
PLUG PIPE
7052045
$26,24 Unit Price incl. VAT
9
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
10
WASHER(10)
5211101
Not Available
10
KIT PAD F.BRAKE Substituted by 2200465 (Complete Set of 4 Pads)
1930643
2200465
$83,99 Unit Price incl. VAT
11
NUT-5/16-18-FULL HT-Y
7542301
$3,14 Unit Price incl. VAT
11
MOUNT CALIPER ASM.
1910037
Not Available
12
NUT LOCK Substituted by 7543201
7543202
Not Available
12
SUPPORT LH STRUT&SPINDLE Substituted by 5130803
5130655
Not Available
12
SUPPORT RH STRUT&SPINDLE Substituted by 5130804
5130656
Not Available
13
O RING
5410470
$4,19 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
14
CAP HUB Substituted by 5431368
5130684
$47,24 Unit Price incl. VAT
15
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
15
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
16
RIM FRONT Substituted by 1520159-117
1520159
Not Available
17
TIRE FR(25X8-12)
5410568
5419027
$153,29 Unit Price incl. VAT
18
CAGE ROLL Substituted by 3250028
3250023
$430,49 Unit Price incl. VAT
19
SPRING GARTER
3250022
Not Available
20
ROLLS
3250010
$68,24 Unit Price incl. VAT
21
CAM
3250024
Not Available
22
PLATE ARMATURE
5211148
$52,49 Unit Price incl. VAT
23
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
