1
Engine displacement
0
2
Year
1992
3
Trim
FIN RXL SKS - F920568
4
Parts Catalog
BRAKE CHAINCASE ALL SWEDISH SNOWMOBILES LESS SUPERTRAK, WIDETRAK LITE (4922482248001A)
5
Parts Diagram
Parts Catalog
THROTTLE BODY RXL/RXL SKS (4921322132045A)
by
CLUTCH GUARD ASSEMBLY/SKI WELDMENT SWEDISH SNOWMOBILES (4922482248011A)

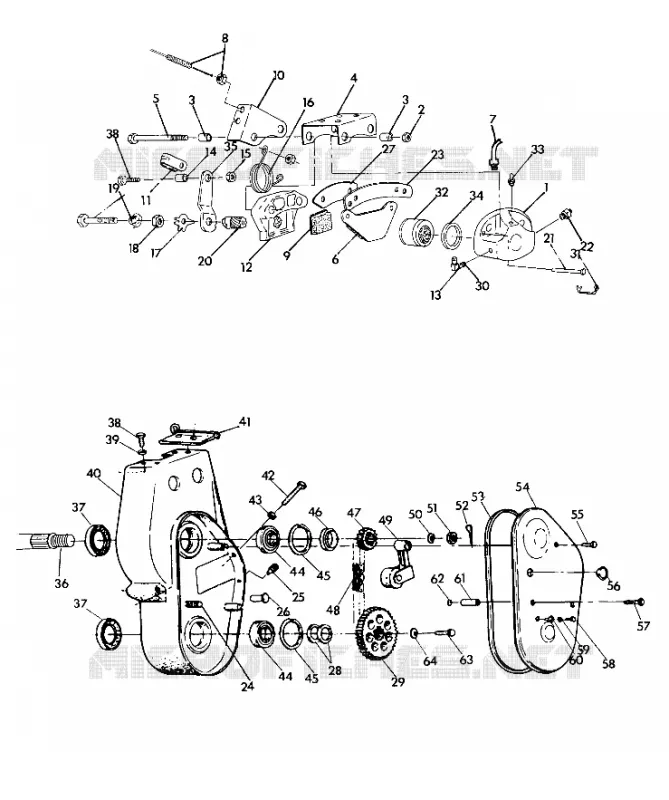

BRAKE CHAINCASE ALL SWEDISH SNOWMOBILES LESS SUPERTRAK, WIDETRAK LITE (4922482248001A)
1
HOUSING PISTON
1930589
$179,54 Unit Price incl. VAT
2
NUT
1930558
Not Available
3
BUSHING
1930559
Not Available
4
BRKT BRAKE CALIPER (650 SKS)
5222234
Not Available
4
BRKT BRAKE CALIPER Substituted by 5222423-067 (All except 650)
5222423
Not Available
5
BOLT-BRIDGE
1930561
Not Available
6
PAD BRAKE
1930569
Not Available
7
LINE BRAKE
1930696
Not Available
7
LINE BRAKE
1930692
Not Available
8
CABLE BRAKE
7080376
Not Available
8
CABLE BRAKE
7080349
Not Available
9
PAD BRAKE (THICK)
1930588
Not Available
10
BRACKET Substituted by 1910024-067
1910024
Not Available
11
PIN CLEVIS
7080316
Not Available
12
CALIPER ASM BRAKE
1930652
Not Available
13
ELBOW-FEMALE
7052034
$8,39 Unit Price incl. VAT
14
BUSHING
5332795
Not Available
15
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
16
SPRING BRAKE RETURN
7041147
Not Available
17
TAB-JAM NUT LOCK
1930578
Not Available
18
NUT-JAM
1930577
Not Available
19
BOLT & STOP
1930590
Not Available
20
SHAFT-HELIX
1930580
$46,92 Unit Price incl. VAT
21
PIN PAD RETAINING
1930563
Not Available
22
SWITCH-STOPLIGHT
4110046
Not Available
23
SPACER (SWED.BRAKE)
5211163
Not Available
24
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
25
PLUG MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
26
CAP STUD COVER
5020569
Not Available
27
SPACER
5210999
Not Available
28
BUSHING
7556509
$3,14 Unit Price incl. VAT
29
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
30
SHAFT-IDLER
5020347
Not Available
31
CLIP-SPRING
1930562
Not Available
32
PISTON
1930568
Not Available
33
SCREW-BLEEDER
1930564
Not Available
34
SEAL-PISTON
1930567
Not Available
35
LEVER-BRAKE
5430602
$68,24 Unit Price incl. VAT
36
SHAFT INPUT Substituted by 1332135-067
5130787
Not Available
37
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
38
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
39
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
40
CHAINCASE-MACHINED SCAND [No Longer Available]
5130797
Not Available
41
RETAINER RECOIL Substituted by 1011593-067 (600 600 LE)
1011593
Not Available
42
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
43
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
44
BEARING CHAINCASE **
3514306
Not Available
45
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
46
SPACER SPROCKET
5010270
Not Available
48
CHAIN 64 PITCH
3224023
Not Available
49
TIGHTENER ASM. Substituted by 1332213
1332078
Not Available
50
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
51
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
52
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
53
GASKET-CHAINCASE
5410277
Not Available
54
COVER CHAINCASE
5222579
Not Available
55
BOLT(10)
7512246
Not Available
56
PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426
5410012
Not Available
57
BOLT S.S.(10)
7512293
Not Available
58
SCREW(10)
7511909
$7,34 Unit Price incl. VAT
59
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
60
NUT-WELL(10)
7541918
Not Available
61
STAND-OFF C/C COVER
5333033
Not Available
62
O RING
5410565
Not Available
63
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
64
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
