1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 2X4 - A03CB32AA
4
Parts Catalog

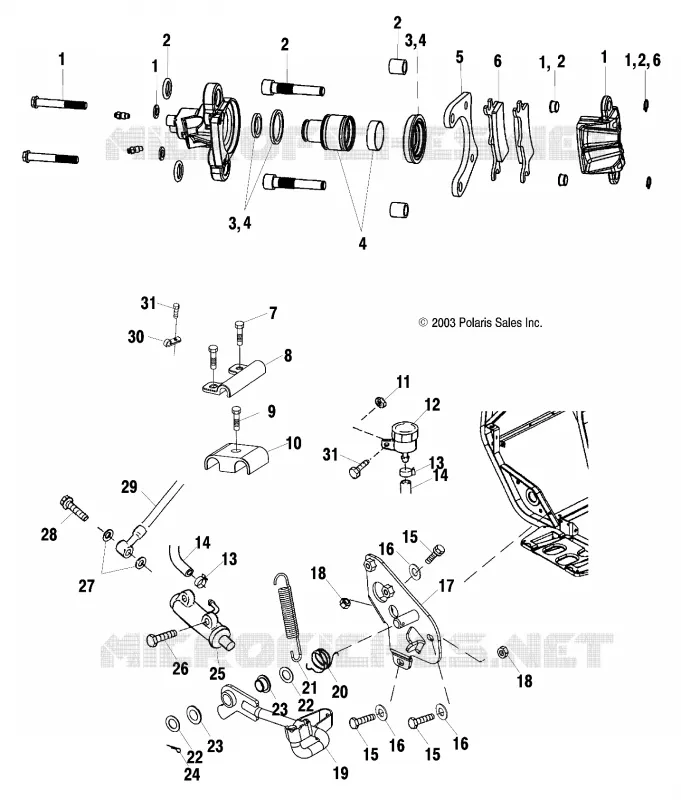

REAR BRAKE
5
Parts Diagram
Parts Catalog
CRANKCASE
by
RECOIL STARTER
REAR BRAKE
1
1
1
1
1
2
2
2
2
2
3
3
4
4
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
15
15
16
16
16
17
18
18
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
31
1
Kit Anvil Body
2201873
$249,89 Unit Price incl. VAT
2
KIT-SLIDE BOLT DH4P
2201870
$120,74 Unit Price incl. VAT
3
KIT-SEAL DH4P
2201872
$120,74 Unit Price incl. VAT
4
KIT-PISTON & SEAL DH4P
2201869
$225,74 Unit Price incl. VAT
5
Asm. Brake Caliper
1910425
1910680
$488,24 Unit Price incl. VAT
6
Kit Brake Pad [If built after 7/12/02]
2202414
$56,16 Unit Price incl. VAT
7
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
8
Clamp Brake Line
5434041
Not Available
9
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
10
CLIP-RETAINING DUAL .250# LINE
7670126
$9,44 Unit Price incl. VAT
11
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
12
Reservoir Brake Rear
1930854
$68,24 Unit Price incl. VAT
13
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
14
Hose Reservoir
1910675
$1,98 Unit Price incl. VAT
15
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
16
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
17
Pivot Mount Brake Rear
1012753067
Not Available
18
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
19
Rod Brake
1014009067
Not Available
20
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
21
Spring Gear Selector Lockout
7042075
$83,99 Unit Price incl. VAT
22
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
23
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
24
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
25
Master Cylinder Foot
1910311
1910791
$325,49 Unit Price incl. VAT
26
Screw
7515158
$9,44 Unit Price incl. VAT
27
SEAL
5410988
$9,44 Unit Price incl. VAT
28
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
29
Line Foot Brake Rear Master Cyl.
1910516
Not Available
30
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
31
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
