ENGINE, AIR INTAKE SYSTEM FOR RANGER XP 1000 EPS EU / TRACTOR / ZUG FROM 2024

CAM CHAIN AND TENSIONER

ENGINE, AIR INTAKE MANIFOLD

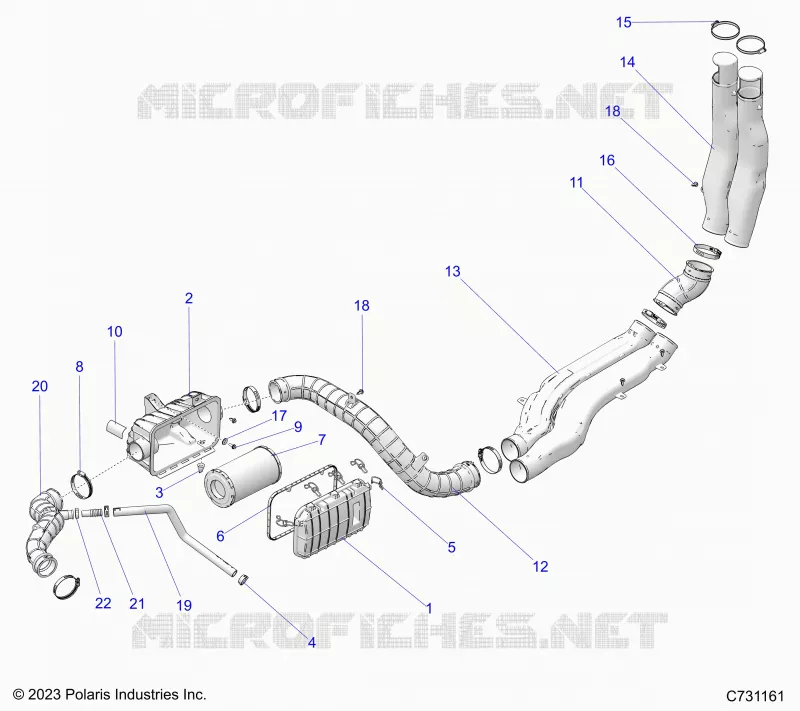

ENGINE, AIR INTAKE SYSTEM

1

ASM-AIRBOX COVER

1241271

$167,99 Unit Price incl. VAT

2

AIRBOX

5455271

$220,49 Unit Price incl. VAT

3

PLUG-DRAIN

5414472

$10,49 Unit Price incl. VAT

4

SPRINGBAND-CLAMP 27/12 GREEN

7080841

$13,64 Unit Price incl. VAT

5

ASM-AIRBOX CLIP

7082449

$12,59 Unit Price incl. VAT

6

SEAL-AIRBOX

5814776

$68,24 Unit Price incl. VAT

7

FILTER-AIR

7082265

$57,63 Unit Price incl. VAT

8

CLAMP-HOSE SLOTTED 60-80 DIA

7082509

$9,44 Unit Price incl. VAT

9

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

10

DECAL-WARN INTAKE [ON AIRBOX]

7185975

Not Available

10

DECAL-CAUT.AIR BOX

7189751

Not Available

11

HOSE-JOINT

5416135

$83,99 Unit Price incl. VAT

12

HOSE-AIRBOX TO TUNNEL

5416169

$173,24 Unit Price incl. VAT

13

DUCT-TUNNEL

5453765

$125,99 Unit Price incl. VAT

14

DUCT-INTAKE FRONT

5453766

$89,24 Unit Price incl. VAT

15

CLAMP-BAND NARROW 70-90MM

7081279

$5,76 Unit Price incl. VAT

16

CLAMP-HOSE SLOTTED 75-90 DIA

7082314

$19,94 Unit Price incl. VAT

17

WASHER-.28 X .81 X .06 ST-M

7555935

$4,19 Unit Price incl. VAT

18

RIVET-TUFLOK .315-.325X.787 ?

7661855

$2,09 Unit Price incl. VAT

19

HOSE-VENT ENGINE

5416136

$62,99 Unit Price incl. VAT

20

ASM-AIRBOX TO PLENUM [INCL. 21-23]

1241155

$314,99 Unit Price incl. VAT

20

HOSE-AIRBOX TO PLENUM

5416171

$194,24 Unit Price incl. VAT

21

FITTING-3/4 DOUBLE BARB

7052580

$10,49 Unit Price incl. VAT

22

CLAMP-HOSE

7081903

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
