1
Engine displacement
570
2
Year
2022
3
Trim
RANGER CREW 570 RIDE COMMAND
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
CRANKCASE

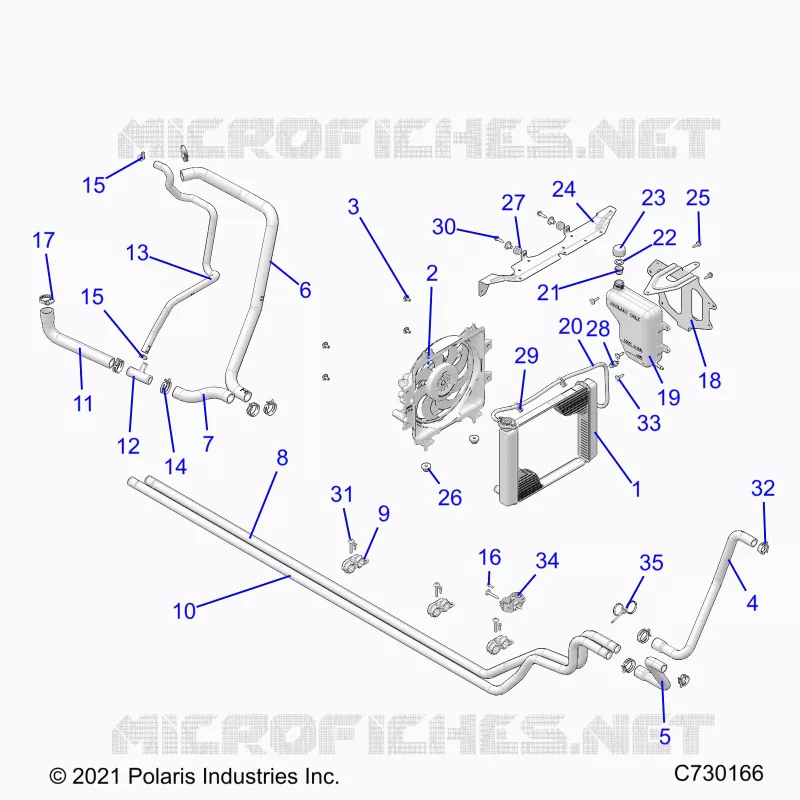

ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
ASM-RADIATOR [INCL. CAP]
1241476
$818,99 Unit Price incl. VAT
2
ASM-FAN AND MOTOR TRIPAC SGL
2415473
$331,79 Unit Price incl. VAT
3
BOLT M6X15MM
7519585
$17,84 Unit Price incl. VAT
4
HOSE-UPPER RAD
5417585
$83,99 Unit Price incl. VAT
5
HOSE-LOWER RAD
5417586
$83,99 Unit Price incl. VAT
6
HOSE-ENGINE OUTLET REAR
5417587
$89,24 Unit Price incl. VAT
7
HOSE-LOWER ENGINE SHORT
5415054
$62,99 Unit Price incl. VAT
8
TUBE-COOLANT 1# CREW
5143869
$99,74 Unit Price incl. VAT
9
BRACKET-COOLANT TUBE
5451221
$16,79 Unit Price incl. VAT
10
TUBE-COOLANT 1# CREW
5143870
$99,74 Unit Price incl. VAT
11
HOSE-BYPASS 1IN FORMED
5414162
$73,49 Unit Price incl. VAT
12
CONNECTOR-TEE 1X1X0.5
7052530
$10,49 Unit Price incl. VAT
13
HOSE-BYPASS 1/2IN FORMED
5417707
$83,99 Unit Price incl. VAT
14
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
15
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
16
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
17
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
18
BRKT-SURGE TANK BLK
5271525329
$83,99 Unit Price incl. VAT
19
TANK-SURGE
5439202
$178,49 Unit Price incl. VAT
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
22
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
23
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
24
BRKT-RAD MNT UPPER BLK
5270541458
$52,49 Unit Price incl. VAT
25
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
26
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
27
ASM-GROMMET & INSERT
5416503
$7,34 Unit Price incl. VAT
28
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
29
CLIP-EDGE 1-3MM 6-45MM SERT.
7081808
$10,49 Unit Price incl. VAT
30
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
31
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
32
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
33
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
34
CLIP-COOLANT ROUTING
5453767
$10,49 Unit Price incl. VAT
35
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
