1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST TRACTOR 500 - A13MN50ET/EX
4
Parts Catalog

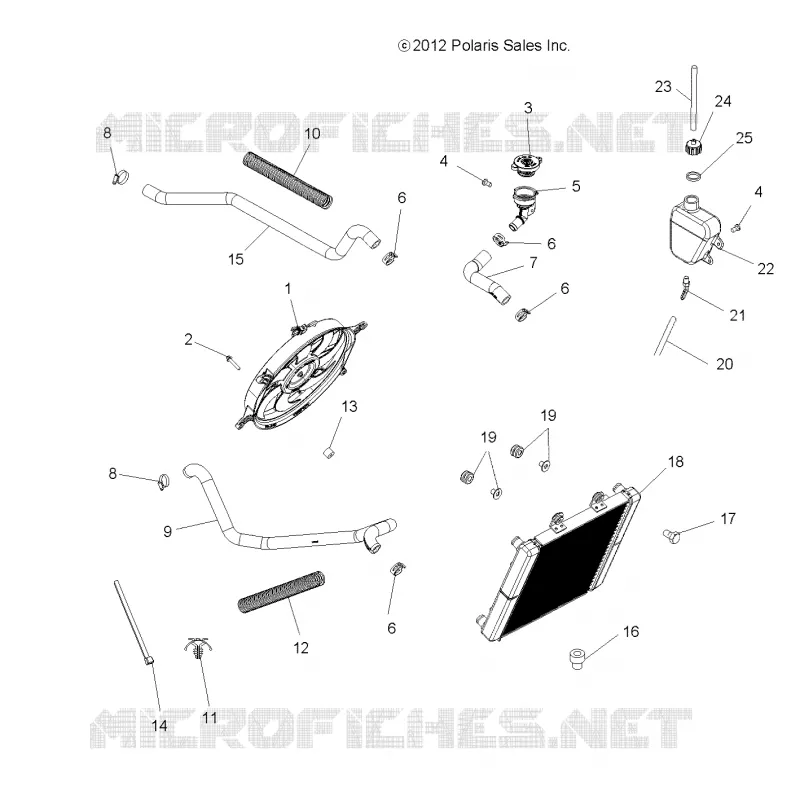

COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
4
5
6
6
6
6
7
8
8
9
10
11
10
13
14
15
16
17
18
19
19
20
21
22
23
24
25
1
2
2
3
3
4
5
6
7
7
8
8
9
9
10
10
11
11
10
10
13
14
15
1
2
3
4
4
5
6
7
1
ASM. FAN AND MOTOR
2410330
$119,16 Unit Price incl. VAT
2
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
3
CAP PRESSURE
1240508
$89,24 Unit Price incl. VAT
4
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
5
FILLER NECK RADIATOR
5412402
$52,49 Unit Price incl. VAT
6
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
7
HOSE FILLER NECK
5414228
$29,39 Unit Price incl. VAT
8
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
9
Hose Radiator Lower
5414217
$99,74 Unit Price incl. VAT
10
CONDUIT-FLEX 1.00 ID PE 25CM
552179325
$19,94 Unit Price incl. VAT
11
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
12
CONDUIT-FLEX 1.00 ID PE 25CM
552179325
$19,94 Unit Price incl. VAT
13
SPACER-6.6IDX19ODX15 NYL BLK
5137361
$10,49 Unit Price incl. VAT
14
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
15
Hose Radiator Upper
5414218
$99,74 Unit Price incl. VAT
16
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
17
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
18
ASM. RADIATOR
1240520
1241477
$834,74 Unit Price incl. VAT
19
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
22
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
23
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
24
CAP OVER FLOW BOTTLE W/FITTING
5437635
$9,44 Unit Price incl. VAT
25
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
