1
Engine displacement
440
2
Year
1994
3
Trim
440 L/C - 0942760
4
Parts Catalog

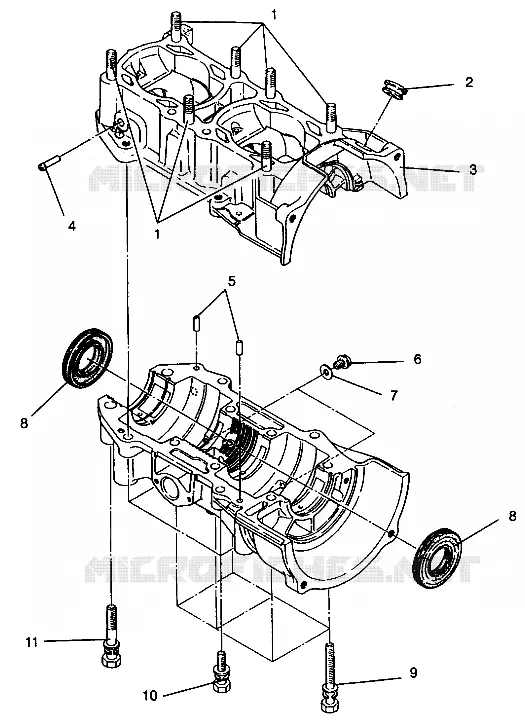

CRANKCASE ASSEMBLY 440 0942760 AND 440 SKS 0942560 (4925072507030A)
5
Parts Diagram
Parts Catalog
OIL TANK/AIR BOX 440 0942760 AND 440 SKS 0942560 (4925072507029A)
by
FUEL PUMP 440 0942760 AND 440 SKS 0942560 (4925072507035A)
CRANKCASE ASSEMBLY 440 0942760 AND 440 SKS 0942560 (4925072507030A)
1
1
2
3
4
5
6
7
8
8
9
10
11
1
1
2
3
4
5
6
7
8
8
9
10
11
1
STUD Substituted by 3084119
3080745
$17,84 Unit Price incl. VAT
2
GROMMET
3082875
$13,64 Unit Price incl. VAT
3
CRANKCASE (Incl. 1 4 4 8-10)
3084609
$768,59 Unit Price incl. VAT
4
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT
5
PIN DOWEL(10) Substituted by 3080103
3083054
$13,64 Unit Price incl. VAT
6
BOLT FLANGE(10) Substituted by 3087035
3083568
7520710
$7,34 Unit Price incl. VAT
7
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
8
SEAL OIL(10)
3083045
$62,99 Unit Price incl. VAT
9
BOLT W/WASHER
3080739
$11,54 Unit Price incl. VAT
10
BOLT&WASHER
3083078
Not Available
11
BOLT&WASHER ASM.
3084220
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
