1
Engine displacement
500
2
Year
2002
3
Trim
500 RMK 136
4
Parts Catalog

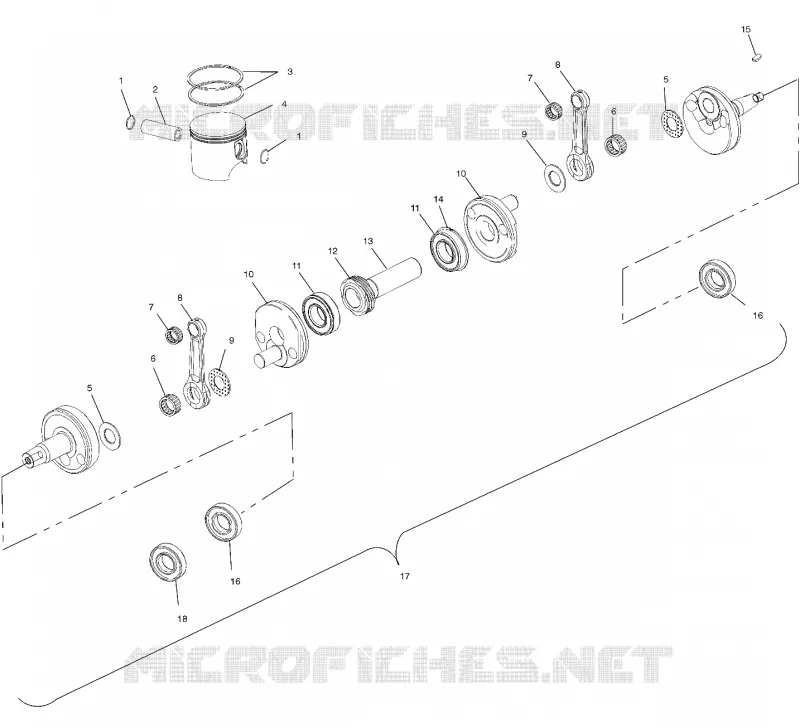

PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
CARBURETOR
PISTON CRANKSHAFT
1
1
2
3
3
3
4
4
4
10
10
10
10
7
7
8
8
10
10
10
10
11
11
12
13
14
15
16
16
17
18
1
CIRCLIP PISTON 20MM. (10)
3022950
Not Available
2
PIN PISTON
3022961
Not Available
3
KIT PISTONRINGS(.50MM O/S) (.50mm/.020 O/S)
2201193
$85,88 Unit Price incl. VAT
3
KIT PISTONRINGS 70.5MM. (Standard)
2201196
Not Available
3
KIT PISTONRINGS (.25MM O/S) (.25mm/.010 O/S)
2201198
Not Available
4
PISTON ASM 70.5MM (Incl. 1-3)
2201383
Not Available
4
PISTON ASM 70.5MM (+.500S) (.50mm/.020 O/S)
2201396
Not Available
4
PISTON ASM 70.5MM (+.25OS) (.25mm/.010 O/S)
2201395
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
BEARING
3552108
Not Available
8
KIT CONNECT.ROD (Incl. 6 7 10)
2201132
$596,39 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BEARING CRANK SEALED
3513508
3514363
$74,54 Unit Price incl. VAT
12
GEAR PUMP DRIVE
5131373
Not Available
13
SHAFT CRANK PUMPDRIVE
5131353
Not Available
14
RING SNAP(10)
7710447
$9,44 Unit Price incl. VAT
15
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
16
BEARING BALL [PTO END]
3585503
$54,59 Unit Price incl. VAT
17
KIT CRANKSHAFT 2CYL SNO MAPE (Incl. 5-7 9-16 18 20)
2201234
Not Available
18
BEARING BALL
3514310
$54,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
