1
Engine displacement
570
2
Year
2018
3
Trim
RANGER 570 EPS HDPS EU POLAND
4
Parts Catalog

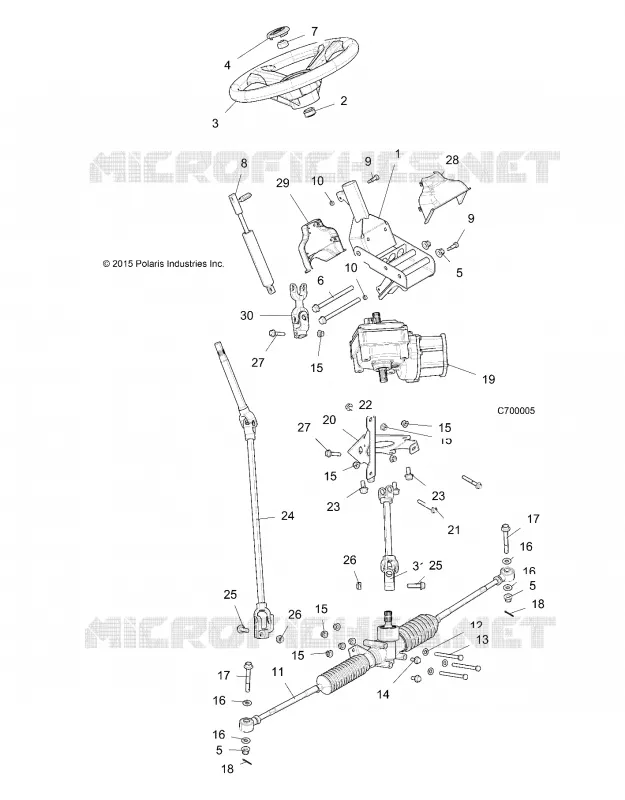

STEERING
5
Parts Diagram
Parts Catalog
ENGINE, WATERPUMP IMPELLER AND COVER
by
WHEELS, FRONT
STEERING
1
2
3
4
5
5
5
6
7
8
9
9
10
10
11
13
14
15
15
15
15
15
16
16
16
16
17
17
18
18
19
19
20
21
22
23
23
24
25
25
26
26
27
27
28
29
30
31
1
ASM-TILT STEER RVTD M10 MT BLK [INCL. 8][TO 2/1/2023]
1824719458
$125,99 Unit Price incl. VAT
2
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
3
WHEEL-STEERING 14#
1823623
$246,74 Unit Price incl. VAT
4
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
5
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
6
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
7
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
8
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
9
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
10
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
11
ASM-GEARBOX STEERING
1824521
$1 049,99 Unit Price incl. VAT
13
BOLT-M8X1.25X95 HX BOLT
7518935
$3,14 Unit Price incl. VAT
14
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
15
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
16
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
17
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519854
$31,49 Unit Price incl. VAT
18
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
19
ASM-POWER STEERING RANGER LT
2413662
$3 538,49 Unit Price incl. VAT
20
BRKT-POWER STEERING BLK [EPS][E57B4][B9]
5258708329
$99,74 Unit Price incl. VAT
21
SCR-M8X1.25X55 HX/FL-Y
7517281
$13,64 Unit Price incl. VAT
22
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
23
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
24
SHAFT STEERING UPPER/LOWER
1824162
$272,99 Unit Price incl. VAT
25
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
26
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
27
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
28
COVER-STEERING COLUMN UPR BLK
5451478070
$29,39 Unit Price incl. VAT
29
COVER-STEERING COLUMN LWR BLK
5451479070
$29,39 Unit Price incl. VAT
30
SHAFT-STEERING UPPER [EPS][E57B4][B9]
1824164
$325,49 Unit Price incl. VAT
31
SHAFT STEERING LOWER W/JOINT EPAS
1824163
$367,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
