BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
FRONT BRAKE CALIPER

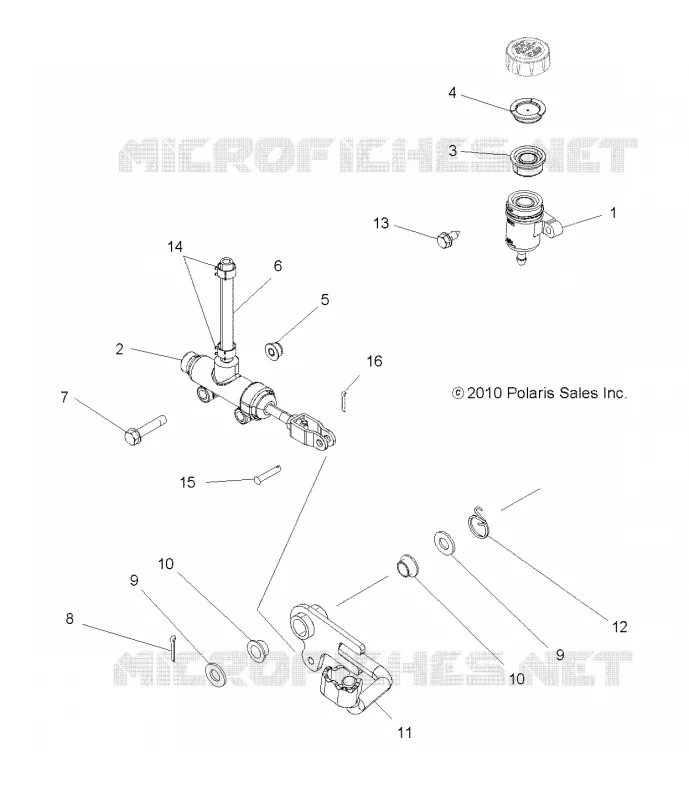

BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
6
7
8
9
9
10
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]
1911224
$68,24 Unit Price incl. VAT
2
ASM. MASTER CYLINDER BRAKE FOOT [INCL. HOSE CLAMPS]
1911688
$173,24 Unit Price incl. VAT
3
DIAPHRAGM RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
4
RING RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
5
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
6
TUBING CONVOLUTED
836005225
$62,99 Unit Price incl. VAT
6
HOSE RESERVOIR
1911267660
1911267-790
$23,09 Unit Price incl. VAT
7
SCR-HH-1/4-20X1.5 GR5 ZY3
7512126
$9,44 Unit Price incl. VAT
8
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
9
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
10
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
11
WELD-BRAKE PEDAL BLK
1911657067
$157,49 Unit Price incl. VAT
12
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
13
SCR-1/4-20X.88 HXWR TAPR GR5 Y
7517312
$2,09 Unit Price incl. VAT
14
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
15
PIN-CLEVIS 1/4X5/8 - Z
7661830
$7,34 Unit Price incl. VAT
16
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
