Parts Catalog

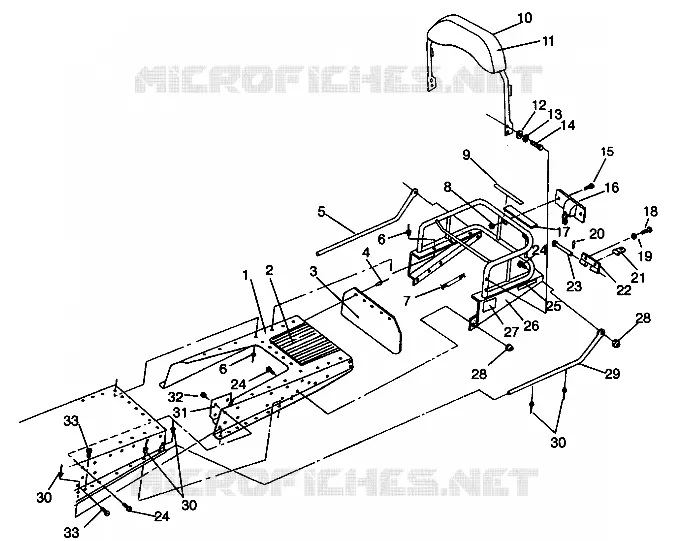

RACK TUNNEL EXTENSION LITE GT 0943133 AND STARLITE GT 0943127 (49250125010010)
5
Parts Diagram
Parts Catalog
NOSEPAN CONSOLE ASSEMBLY LITE GT 0943133 AND STARLITE GT 0943127 (49250125010003)
by
FRONT SUSPENSION AND SKI LITE GT 0943133 AND STARLITE GT 0943127 (49250125010011)
RACK TUNNEL EXTENSION LITE GT 0943133 AND STARLITE GT 0943127 (49250125010010)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
24
24
24
25
26
27
27
27
27
28
28
29
30
30
30
31
31
31
31
32
33
33
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
24
24
24
25
26
27
27
27
27
28
28
29
30
30
30
31
31
31
31
32
33
33
1
PANEL R.CLOSEOFF
5222608067
Not Available
2
PROTECTOR BED
5410619
Not Available
3
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
4
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
5
TUBE RH TUNNEL BLK.
5224466067
$46,40 Unit Price incl. VAT
6
RIVET(50)
7621470
Not Available
7
PROTECTOR HARNESS
5521246
Not Available
8
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
9
DECAL WARN. RACK [No Longer Available]
7073290
Not Available
10
BACKREST ASM. (Incl. 72) 650 SKS
2681356
$383,24 Unit Price incl. VAT
11
COVER BACKREST
2681265
Not Available
12
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
13
WASHER(10)
7552606
$9,44 Unit Price incl. VAT
14
SCREW PAN HD PHILLIPS(10) Substituted by 7515355
7515341
Not Available
15
SCREW(10)
7511985
Not Available
16
TAILLIGHT ASM.
4030041
$146,46 Unit Price incl. VAT
16
BULB-TAIL-LIGHT Substituted by 4030063
4030038
$36,74 Unit Price incl. VAT
16
GASKET
4032015
Not Available
16
LENS-TAIL-LIGHT
4032014
$68,24 Unit Price incl. VAT
17
DECAL TRACK/RACK LITE GT [No Longer Available]
7073291
Not Available
18
SCREW(10) Substituted by 7512490
7512402
Not Available
19
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
20
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
21
HITCH WELD BLK.(U.S.)
1011518067
1011518-458
$54,59 Unit Price incl. VAT
22
HITCH WELD BLK. Substituted by 2871178
1011624067
Not Available
23
PIN CLEVIS
7662209
$17,84 Unit Price incl. VAT
24
BOLT(10)
7515107
Not Available
25
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
26
RACK REAR BLK.
2670129067
Not Available
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
NUT LOCK(10)
7542131
Not Available
29
TUBE LH TUNNEL BLK.
5224461067
Not Available
30
RIVET-CHERRY Q-3/16X.325-Z
7621453
Not Available
31
BRKT RH R.SUSP BLK.
1011780067
Not Available
31
BRKT LH R.SUSP BLK.
1011779067
Not Available
32
NUT
7542101
$7,34 Unit Price incl. VAT
33
BOLT(10)
7515106
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
