1
Engine displacement
0
2
Year
1994
3
Trim
EURO LITE - E943433
4
Parts Catalog

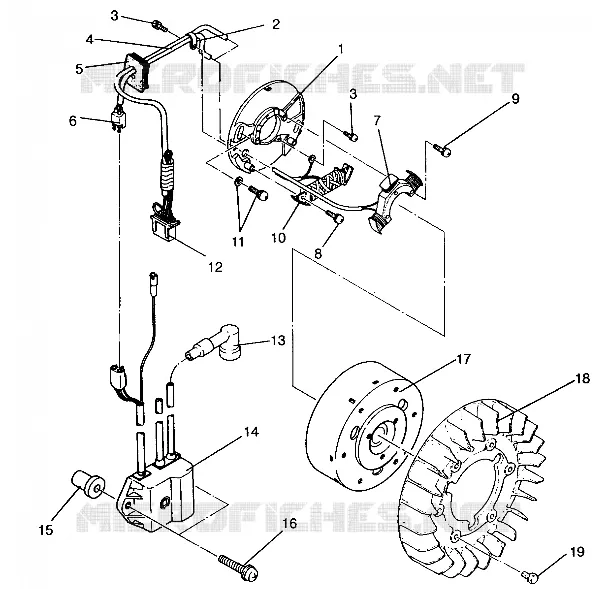

MAGNETO ASSEMBLY LITE E943433 (49273427340031)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY LITE E943433 (49273427340030)
by
FUEL PUMP LITE E943433 (49273427340032)
MAGNETO ASSEMBLY LITE E943433 (49273427340031)
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
PLATE ASM.
3084258
Not Available
1
PLATE COIL
3083987
$524,99 Unit Price incl. VAT
2
CLAMP
3081296
Not Available
3
SCREW&WASHER (10)
3081260
Not Available
4
HARNESS WIRE
3084259
$132,29 Unit Price incl. VAT
5
GROMMET
3082969
Not Available
6
COUPLER-3P
3083150
$18,68 Unit Price incl. VAT
7
COIL LIGHT
3083985
Not Available
8
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
9
SCREW&WASHER ASM.(10)
3083736
$2,09 Unit Price incl. VAT
10
COIL EXCITER
3083984
$173,24 Unit Price incl. VAT
11
SCREW&WASHER (10)
3082175
Not Available
12
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
13
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
14
CDI UNIT
3083723
Not Available
15
NUT-RUBBER
3083240
Not Available
16
SCREW AND WASHER
3083784
$4,19 Unit Price incl. VAT
17
FLYWHEEL (Incl. 2-3)
3083982
Not Available
18
BLOWER
3083152
Not Available
19
BOLT&WASHER
3083153
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
