1
Engine displacement
800
2
Year
2017
3
Trim
800 AXYS RMK ASSAULT 155
4
Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5

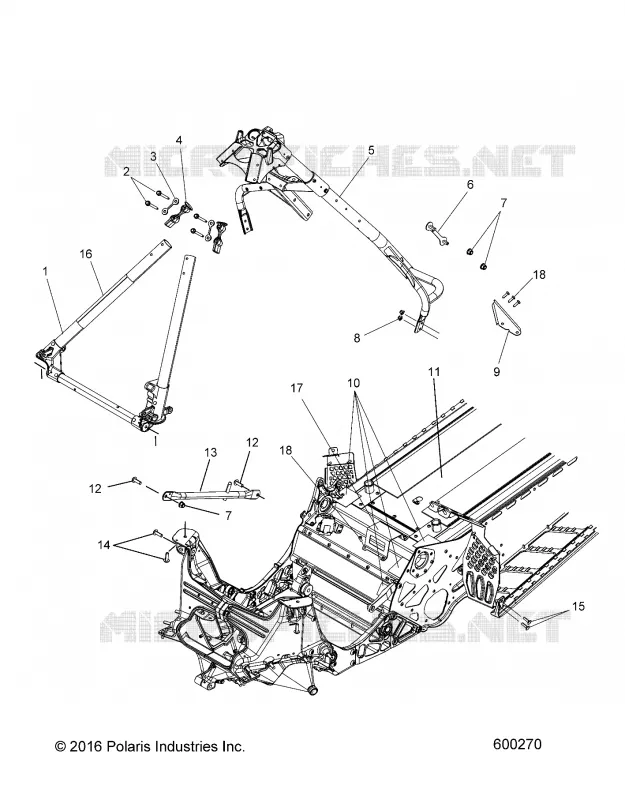

Parts Diagram
Parts Catalog
DECALS OPT. (ORANGE SIDE PANEL, BLK W/BLUE SIDE PANEL, BLK W/ORANGE SIDE PANEL)
by
ENGINE, AIR INTAKE SYSTEM
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
1
2
3
4
5
6
7
8
9
10
11
11
11
11
11
11
11
11
12
12
13
14
15
16
17
18
1
ASM. FRAME TUBE FRONT RMK
1019338
1024053
$808,49 Unit Price incl. VAT
2
SCR-HXFL-M6X1X50 10.9 ZODP30DP
7519967
$7,34 Unit Price incl. VAT
3
SHIM-TUBE CAST
5633083
$12,59 Unit Price incl. VAT
4
SPACER TUBE CAST
5632923
$13,64 Unit Price incl. VAT
5
ASM. FRAME TUBULAR REAR RMK
1019339
$955,49 Unit Price incl. VAT
6
ASM. STUD PLATE
1019337
$19,94 Unit Price incl. VAT
7
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
8
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
9
BRKT. SUPPORT TOE STOP
5262012
$26,24 Unit Price incl. VAT
10
PAD
5814353
$18,89 Unit Price incl. VAT
11
ASM-TUNNEL 155 ASSLT SVC ORANGE BURST [SNOW CHECK SELECT]
1020652647
Not Available
11
ASM-TUNNEL 155 ASSLT SVC BLACK [SNOW CHECK]
1020652458
Not Available
11
ASM-TUNNEL 155 ASSLT SVC NAT [SNOW CHECK SELECT]
1020652309
Not Available
11
ASM-CHASSIS MNT155 ASSLT NAT [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]
1020651309
Not Available
11
ASM-TUNNEL 155 ASSLT SVC MIDNIGHT BLUE [SNOW CHECK]
1020652485
$2 768,31 Unit Price incl. VAT
11
ASM-CHASSIS MNT155 ASSLT MIDNIGHT BLUE [SNOW CHECK][SNOW CHECK][INCL. BULKHEAD AND CHAINCASE]
1020651485
Not Available
11
ASM-CHASSIS MNT155 ASSLT ORANGE BURST [SNOW CHECK][SNOW CHECK SELECT][INCL. BULKHEAD AND CHAINCASE]
1020651647
Not Available
11
ASM-CHASSIS MNT155 ASSLT BLACK [SNOW CHECK][SNOW CHECK][INCL. BULKHEAD AND CHAINCASE]
1020651458
Not Available
12
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
13
BRACE TUBE RH E-COAT
1019861067
$68,24 Unit Price incl. VAT
14
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
15
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$6,29 Unit Price incl. VAT
16
FOIL-100MM X 200MM
5814124
$13,64 Unit Price incl. VAT
17
BRKT. AIR BOX SUPPPORT
5258618
$19,94 Unit Price incl. VAT
18
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
