WHEELS, REAR TIRE AND BRAKE DISC FOR SPORTSMAN 400 HO 4X4 - A13MH46AF/AX/MS46AX FROM 2013

WHEELS, FRONT TIRE AND BRAKE DISC

FRONT STORAGE BOX

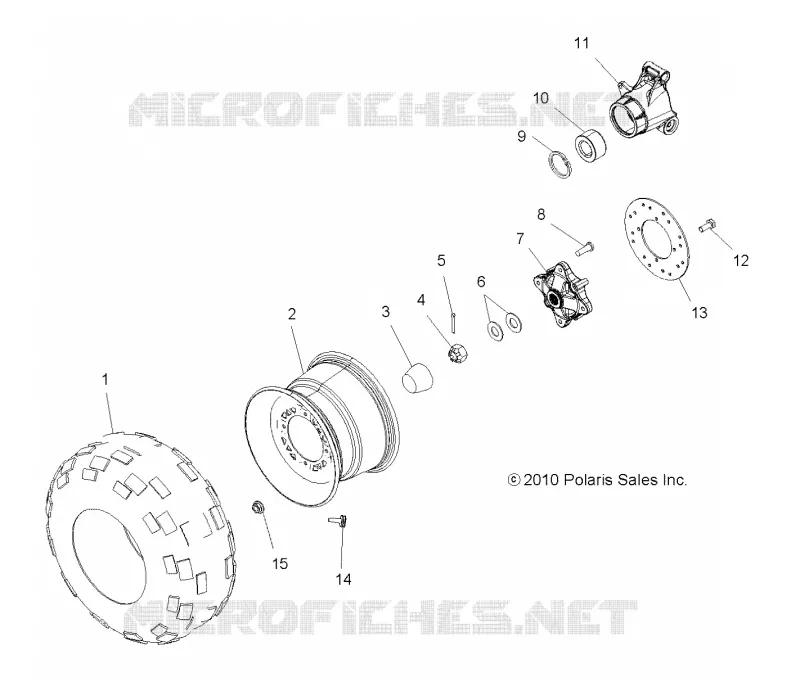

WHEELS, REAR TIRE AND BRAKE DISC

1

Tire 24x10-12 [MS46AX]

5414545

Not Available

1

TIRE-25X10-12 NHS 489

5413961

$180,06 Unit Price incl. VAT

2

WELD-RIM REAR 12X8.0 BLK [TO 9/4/2023]

1520457067

$225,21 Unit Price incl. VAT

3

Cover Dust Hub

5413427

$52,49 Unit Price incl. VAT

4

NUT-M18X1.5 CASTLE ZINC/YELLOW

7547337

$3,66 Unit Price incl. VAT

5

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

6

WASHER-CONE.755X1.5X.072-.107P [RRP99C]

7555796

$14,69 Unit Price incl. VAT

7

Hub Rear Wheel Black

5135113

$157,49 Unit Price incl. VAT

8

STUD-3/8-24X1.38 PRESS FIT-Z

7518378

$3,14 Unit Price incl. VAT

9

RING-RETAINING 2.875 INTERNAL

7710440

$18,89 Unit Price incl. VAT

10

BEARING-WHEEL 40X74X40MM

3514635

$73,49 Unit Price incl. VAT

11

CARRIER-BEARING WHEEL (MACH)

5135563

$121,79 Unit Price incl. VAT

12

SCR-HH-3/8-16X0.75 GR5 ZY3

7518903

$7,34 Unit Price incl. VAT

13

DISC-BRAKE REAR 8.625X.188

5248250

$141,74 Unit Price incl. VAT

14

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

15

NUT-FLANGE TWO PIECE 3/8-24

7547237

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
