1
Engine displacement
440
2
Year
1999
3
Trim
440 XCR SP - 099NX4CS
4
Parts Catalog
CHAINCASE
5

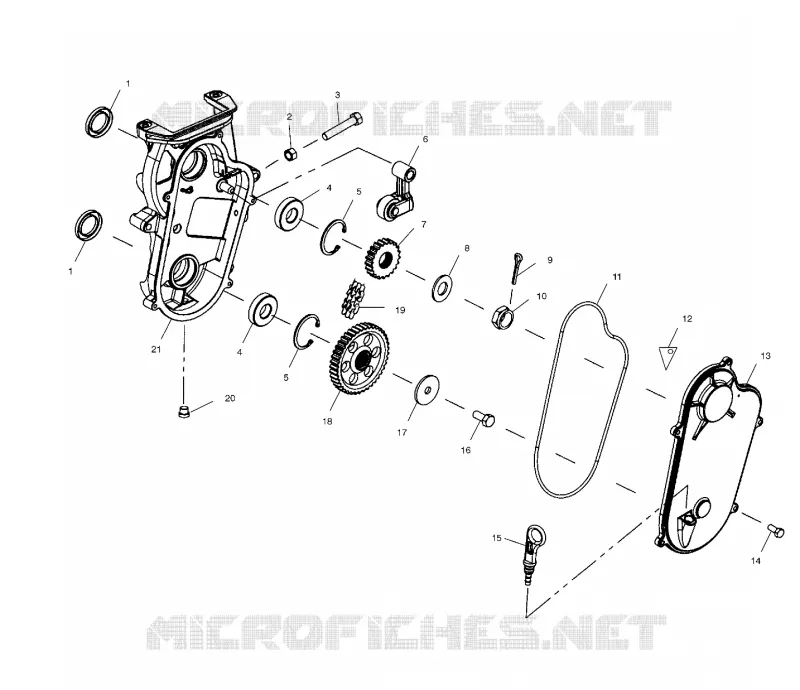

Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
DRIVE TRAIN
CHAINCASE
1
1
2
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
2
NUT-CHAIN ADJUSTER 3/8-16
5132237
$17,84 Unit Price incl. VAT
3
SCREW(10)
7512470
Not Available
4
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
5
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
6
WHEEL C/C IDLER
5630123
Not Available
6
BEARING
3553002
$20,99 Unit Price incl. VAT
6
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
6
TIGHTENER CHAINCASE (Includes the following)
1332213
Not Available
6
PIN CHAIN TIGHTENER
7662210
Not Available
7
SPKT 21T 3/4W 15T SPL HYVO Substituted by 2900005
3221088
Not Available
8
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
9
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
10
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
11
GASKET O-RING CHAINCASE
5411497
$36,74 Unit Price incl. VAT
12
GASKET VENT
5811850
Not Available
13
COVER-CHAINCASE 7.92 MAG BLK Substituted by 5132370-067
5132113067
$238,34 Unit Price incl. VAT
14
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
15
DIPSTICK ASM.
1332223
Not Available
16
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
17
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
18
SPKT 41T 3/4W 15T SPL HYVO Substituted by 2900014
3222095
3225068
$73,49 Unit Price incl. VAT
19
CHAIN 74P 3/4W
3221109
$262,49 Unit Price incl. VAT
20
PLUG
7052115
$10,49 Unit Price incl. VAT
21
CHAINCASE Substituted by 5131826
5132112
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
