1
Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AA
4
Parts Catalog
COOLING SYSTEM
5

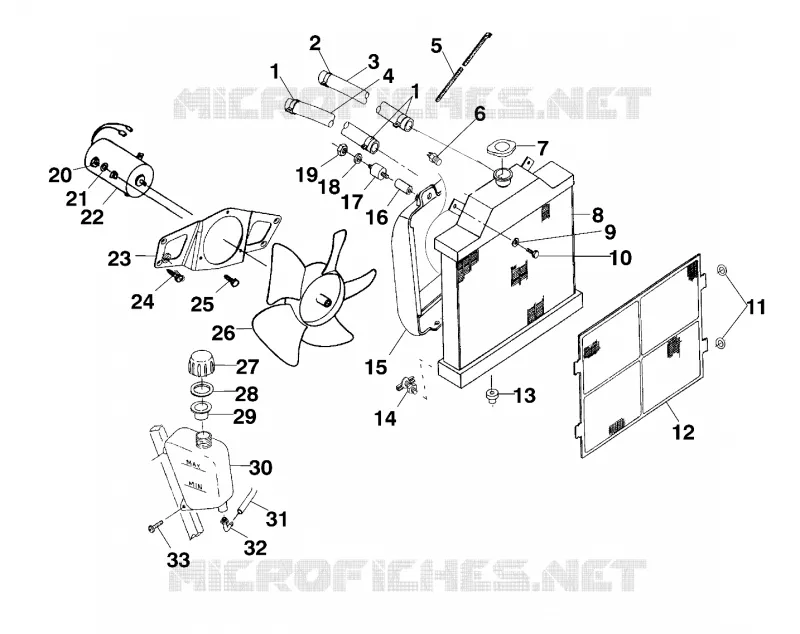

Parts Diagram
Parts Catalog
DECALS
by
CV JOINT
COOLING SYSTEM
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
2
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
3
HOSE 3/4X22#
5411410
Not Available
4
HOSE-LOWER ENGINE
5411072
Not Available
5
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
6
SWITCH-THERMAL 4 STROKE 500CC (If Built Before 6/08/99)
4010202
$136,49 Unit Price incl. VAT
7
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
8
RADIATOR #U#FLOW
1240015
Not Available
9
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
10
BOLT
7512113
$7,34 Unit Price incl. VAT
11
O-Ring
5410607
Not Available
12
COVER RADIATOR W/MESH
5431760
Not Available
13
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
14
VALVE DRAIN COCK
7052181
Not Available
15
SHROUD FAN (ATV)
5432593
Not Available
16
SPACER MOUNT
5020572
$16,79 Unit Price incl. VAT
17
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
18
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
19
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
20
NUT-8-32 NYL-Y
7547004
$9,44 Unit Price incl. VAT
21
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
22
MOTOR FAN LIQ D-SHAFT CONN
4170013
Not Available
23
BRKT.COOL.FAN BLK
5241355067
Not Available
24
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
25
SCREW
7517475
Not Available
26
BLADE FAN NYLON 8#
5242550
Not Available
27
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
28
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
29
PLUG CAP Substituted by 5433774
5431895
5433774
$10,49 Unit Price incl. VAT
30
TANK SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
31
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
32
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
33
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
