1
Engine displacement
800
2
Year
2003
3
Trim
800 RMK 144 F/O
4
Parts Catalog

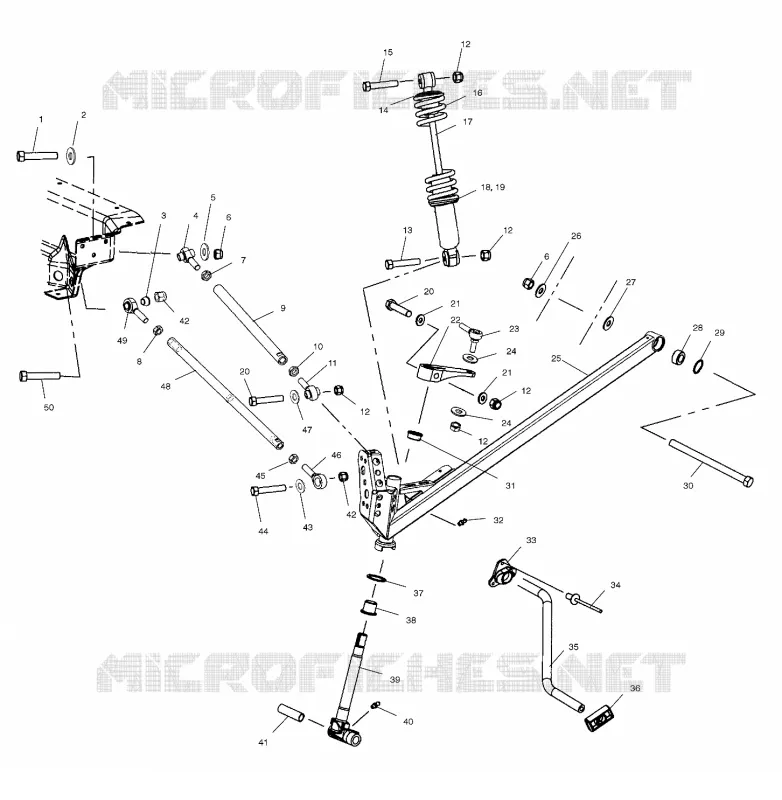

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
RAIL MOUNTING SUSPENSION
FRONT SUSPENSION
1
BOLT
7517980
$12,59 Unit Price incl. VAT
2
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
3
BUSHING SPACER
5132454
Not Available
4
Rod End LH
7061081
Not Available
5
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
6
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
7
NUT(10)
7547117
Not Available
8
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
9
Tube Radius Upper Cld Slv
5133543385
$157,49 Unit Price incl. VAT
10
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
11
ROD END RADIUS 7/16
7061061
$99,74 Unit Price incl. VAT
12
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
13
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
14
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
15
SCREW
7515415
$2,09 Unit Price incl. VAT
16
Spring Compression Red [IPF]
7041576293
$99,74 Unit Price incl. VAT
16
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
17
Shock IFS
7042059
Not Available
17
Shock IFS Nitrex
7042197
$325,49 Unit Price incl. VAT
18
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
19
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
20
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
21
Washer .105
7555832
$4,19 Unit Price incl. VAT
22
Arm Steering
5133060
$112,86 Unit Price incl. VAT
23
Rod End RH
7061086
$99,74 Unit Price incl. VAT
24
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
25
Asm. Trailing Arm Red LH [Incl. 27 28]
1821201293
$540,74 Unit Price incl. VAT
25
Asm. Trailing Arm Yellow LH [Incl. 27 28]
1821201216
Not Available
25
Asm. Trailing Arm Yellow RH [Incl. 27 28]
1821202216
Not Available
25
Asm. Trailing Arm Red RH [Incl. 27 28]
1821202293
Not Available
26
WASHER FLAT
7555820
$7,34 Unit Price incl. VAT
27
CUP TRAILING ARM MNT
5132364
$36,74 Unit Price incl. VAT
28
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
29
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
30
BOLT
7512099
$36,74 Unit Price incl. VAT
31
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
32
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
33
Bushing Torsion Bar
5433814
$40,94 Unit Price incl. VAT
34
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
35
Bar Torsion
5245217067
Not Available
36
Slide Torsion Bar
5434371
$47,24 Unit Price incl. VAT
37
BUSHING
7556509
$3,14 Unit Price incl. VAT
38
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
39
SHAFT-SPINDLE W/STEER STOP BLK
6230225067
$330,74 Unit Price incl. VAT
40
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
41
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
42
Nut Nylok
7547216
Not Available
43
Washer
7556213
Not Available
44
BOLT-1/2-20X2 HXCAP GR5-Y
7517906
Not Available
45
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
46
ROD END-RADIUS RH LOWER
7061052
$99,74 Unit Price incl. VAT
47
WASHER
7556153
$3,66 Unit Price incl. VAT
48
Tube Radius Lower
5132953
Not Available
49
Rod End
7061087
$230,99 Unit Price incl. VAT
50
Bolt
7518041
$11,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
