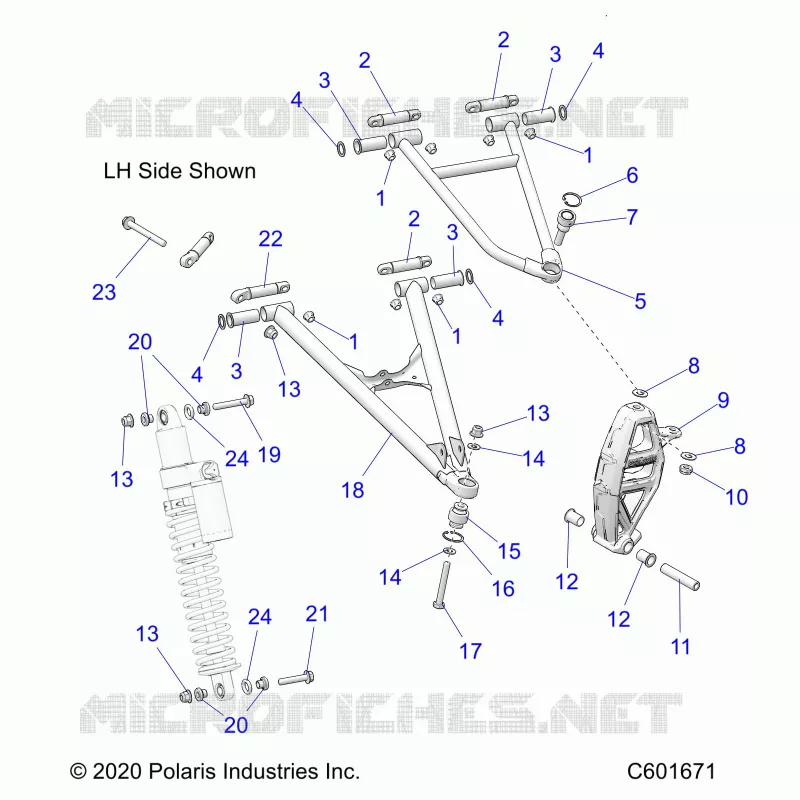

FRONT WISHBONES FOR 850 PATRIOT SWITCHBACK ASSAULT 146 FROM 2024

FRONT WISHBONES

1

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

2

SHAFT PIVOT GROOVED

5140556

$52,49 Unit Price incl. VAT

3

BUSHING PIVOT

5450297

$6,29 Unit Price incl. VAT

4

WASHER

7556758

$6,29 Unit Price incl. VAT

5

CONTROL ARM LH UPPER MOLY BLACK [CONTROL ARM ONLY]

1824171067

$283,49 Unit Price incl. VAT

5

CONTROL ARM RH UPPER MOLY BLACK [CONTROL ARM ONLY]

1824172067

Not Available

6

RING RETAINING

7710642

$4,19 Unit Price incl. VAT

7

BEARING SPHERICAL UPPER CONTROL ARM

7061179

$47,24 Unit Price incl. VAT

8

WASHER-M12X25X1.6 THRU HARD ZOD

7556994

$6,29 Unit Price incl. VAT

9

ASM-SPINDLE LH RADIANT GREEN [COLOR OPTION][INCL. 12]

1824939887

$404,24 Unit Price incl. VAT

9

ASM-SPINDLE RH LIFTED LIME [COLOR OPTION][INCL. 12]

1824940801

$404,24 Unit Price incl. VAT

9

ASM-SPINDLE LH PLUM CRAZY [COLOR OPTION][INCL. 12]

1824939784

$435,74 Unit Price incl. VAT

9

ASM-SPINDLE RH RADIANT GREEN [COLOR OPTION][INCL. 12]

1824940887

$404,24 Unit Price incl. VAT

9

ASM-SPINDLE RH ORG BURST [COLOR OPTION][INCL. 12]

1824940647

$435,74 Unit Price incl. VAT

9

ASM-SPINDLE LH ORG BURST [COLOR OPTION][INCL. 12]

1824939647

$435,74 Unit Price incl. VAT

9

ASM-SPINDLE RH PLUM CRAZY [COLOR OPTION][INCL. 12]

1824940784

$435,74 Unit Price incl. VAT

9

ASM-SPINDLE LH BLK [COLOR OPTION][INCL. 12]

1824939067

$493,49 Unit Price incl. VAT

9

ASM-SPINDLE LH LIFTED LIME [COLOR OPTION][INCL. 12]

1824939801

$404,24 Unit Price incl. VAT

9

ASM-SPINDLE RH BLK [COLOR OPTION][INCL. 12]

1824940067

$493,49 Unit Price incl. VAT

10

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

11

BUSHING

5136910

$13,64 Unit Price incl. VAT

12

BUSHING SKI PIVOT

5438460

$27,29 Unit Price incl. VAT

13

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

14

WASHER

7555806

$1,56 Unit Price incl. VAT

15

KIT SPHERICAL BEARING LOWER

2204229

$54,59 Unit Price incl. VAT

16

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

17

SCREW M10x75 HCS

7519015

$10,49 Unit Price incl. VAT

18

CONTROL ARM LOWER LH BLACK [CONTROL ARM ONLY]

1824169067

Not Available

18

CONTROL ARM LOWER RH BLACK [CONTROL ARM ONLY]

1824170067

Not Available

19

SCREW

7518941

$7,34 Unit Price incl. VAT

20

SPACER-10.2IDX12.62OD

5136530

$8,39 Unit Price incl. VAT

21

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

22

SHAFT PIVOT LCA FRONT GROOVED

5140557

$52,49 Unit Price incl. VAT

23

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$9,44 Unit Price incl. VAT

24

O-RING 0.600IDX.210

5412290

$3,66 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
