1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN 500 EFI SCANDINAVIAN - A08MH50SS/SQ
4
Parts Catalog
STEERING POST
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
SUSPENSION, A-ARM AND STRUT MOUNTING

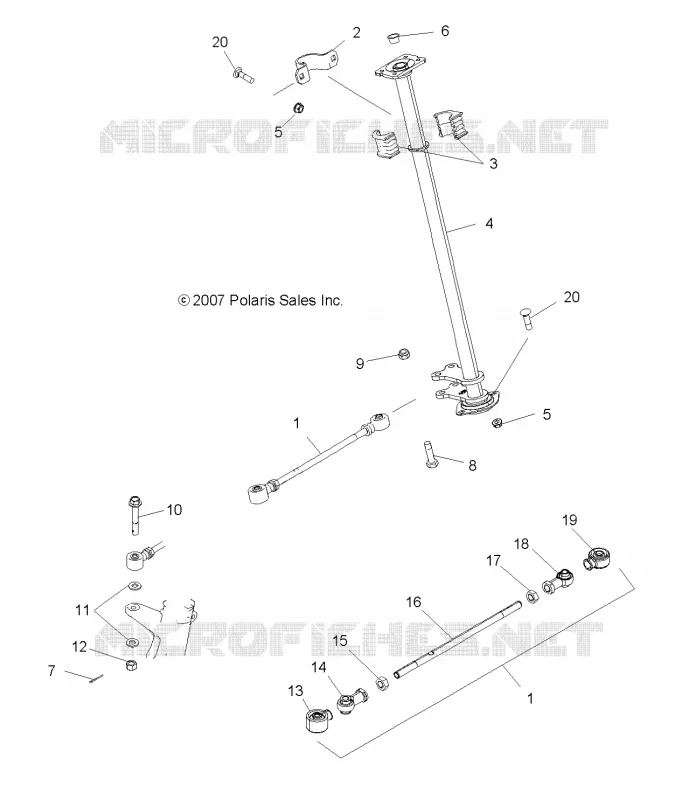

STEERING POST
1
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
1
ASM-TIE ROD 1/2-20X14.16 [INCL. 2-8]
1822851
$204,74 Unit Price incl. VAT
2
Bracket Bushing Steering Upper
5246732
5257028
$62,99 Unit Price incl. VAT
3
Bushing Steering Upper
5433866
5439731
$12,59 Unit Price incl. VAT
4
ASM-STEERING POST 4X4 RAD RIV [SEG]
1823278
$330,74 Unit Price incl. VAT
5
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
6
Plug Steering Post
5435661
$9,44 Unit Price incl. VAT
7
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
8
SCREW
7515415
$2,09 Unit Price incl. VAT
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
11
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
12
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
13
BOOT-SEAL ROD END 10MM
5412929
$20,99 Unit Price incl. VAT
14
ROD-END 10MM 1/2-20LH 42 DEG
7061138
$104,99 Unit Price incl. VAT
15
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
16
ROD-TIE 1/2-20X12.21
5134242
$83,99 Unit Price incl. VAT
17
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
18
ROD-END 3/8 1/2-20RH 44DEG
7061139
$115,49 Unit Price incl. VAT
19
BOOT-SEAL ROD END 1/2 IN
5412928
$20,99 Unit Price incl. VAT
20
SCR-RHCAR-5/16-18X0.75GR5ZY3
7517428
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
